ROADVISION RWL400 SERIES LED WORK LIGHT ROUND FLOOD BEAM 27W
Regular price
Sale price
$85.00
RWL427RF
Unit price
/ per
GST included.
ROADVISION’s Series of LED work lights provide high performance in a durable package designed for Australia’s toughest environments. With multi voltage input, a super durable light weight die-cast housing and polycarbonate lens, Roadvision’s work lights are suitable for any application. Packing a punch for those on a budget, the RWL400 Series square work lamps feature 3W or 10W economical Epistar LED’s delivering the biggest bang for your buck.
- RWL400 Series LED work lamps produce up to 3600lm of instant light output
- Available in 18W, 27W or 40W models
- 3W or 10W Epistar LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS
DIMENSIONS
RANGE SPECIFICATIONS
| Part Number | RWL427RF | RWL427SF |
|---|---|---|
| Description | 400 Series LED Work Lamp 27W Flood - Round | 400 Series LED Work Lamp 27W Flood - Square |
| Beam Type | Flood Beam | Flood Beam |
| Lumens Light Output (Effective) | 1620lm | 1620lm |
| Beam Distance | 102m | 66m |
| Total Watts | 27W | 27W |
| Light Source | 9 x 3W Epistar LED's | 9 x 3W Epistar LED's |
| Input Voltage | 10-30V DC | 10-30V DC |
| Current Draw Amps | 2.1A @ 13.8V DC | 2.1A @ 13.8V DC |
| Dimensions | 110x55x128mm | 110x55x128mm |
| Wiring | 300mm Lead | 300mm Lead |
| Lux @ 10m | 26 Lux | 11 Lux |
| Meters @ 1 Lux | 51m | 33m |
| Meters @ 0.5 Lux | 102m | 66m |

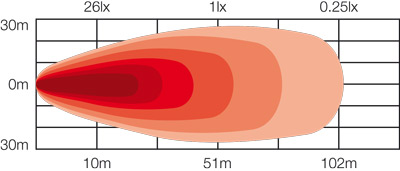

BEAM DIAGRAM – RWL427RF
BEAM DIAGRAM – RWL427SF
