ROADVISION’s RWL52 Series work lights offer uncompromised performance and energy efficiency whilst being compact and easy to install. The RWL52 Series are equipped with thermal management technology – smart adjusting to the environmental temperature to balance optimal performance and overheating prevention. Featuring a lightweight die-cast housing and polycarbonate lens, the RWL52 Series provide worry free operation in even the toughest conditions.

ROADVISION RWL52 SERIES LED WORK LIGHT SQUARE
Regular price
Sale price
$269.00
RWL5280F
Unit price
/ per
GST included.
RANGE FEATURES
- RWL52 Series LED work lamps produces a light output of up to 9831 max lumens
- Thermal Management Technology
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS

RANGE SPECIFICATIONS
Part Number | RWL5246S | RWL5280F |
---|---|---|
Description | Work Lamp LED 45W Square | Work Lamp LED 120W Square |
Beam Type | Spot Beam | Flood Beam |
Maximum Lumens | 3756lm | 9831lm |
Maximum Watts | 45W | 120W |
Number of LED's | 9 x 5W Osram LED's | 36 x 5W Osram LED's |
Lux @10m | 1340 Lux | 110 Lux |
Lens Construction | Polycarbonate | Polycarbonate |
Housing Construction | Aluminium | Aluminium |
Input Voltage | 10-30V | 10-30V |
Current Draw Amps | 3.8A @ 13.8V DC | 10.0A @ 13.8V DC |
Dimensions AxBxC | 118x132x74mm | 118x132x74mm |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |

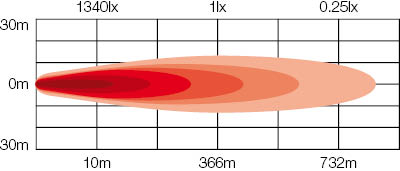

BEAM DIAGRAM – RWL5246S

BEAM DIAGRAM – RWL5280F
