TOYOTA LANDCRUISER 300 SERIES UNDER BONNET DUAL BATTERY KIT

Regular price $1,997.00 Sale price $1,793.00
FAB-ASM-TLC300-25KIT
Unit price  per
GST included. Shipping calculated at checkout.
Regular price $1,997.00 Sale price $1,793.00
FAB-ASM-TLC300-25KIT
Unit price  per

1/9/2023 - PLEASE NOTE, THE SOLAR BRACKET WAS DESIGNED FOR 300 SERIES IN MIND, HOWEVER WE HAVE FOUND THAT THE 2023 MODEL OF THE 300 SERIES HAS MODIFICATIONS WHICH DON'T ALLOW THE SOLAR BRACKET TO FIT IN THE SAME WAY AS THE MODELS BEFORE 2023. WE ARE IN THE PROCESS OF DESIGNING ANOTHER VERSION TO SUIT THESE VEHICLES, PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS KIT AND HAVE A 2023+ 300 SERIES.



No drilling needed, uses only factory mounting points and bolts!



This Under Bonnet Dual Battery Kit for Toyota 300 Series Landcruiser includes everything you need for an easy DIY install.



It includes all the wiring needed, premade and ready to install. Cables are crimped and can easily be bolted in. This Ready to Drive Anywhere Kit enables you to have a 105Ah AGM battery, an upgraded start battery (DIN65 AGM), a Redarc BCDC Charger, jump start functionality, solar plugin point and an additional circuit for each battery through the included midi fuse holders, which are mounted on the battery hold down clamp.



This Ready to Drive Anywhere Kit is custom designed to fit into the Toyota Landcruiser 300 Series.





About Klarmann Brackets



Klarmann Brackets is Australian owned, based in Perth. All brackets are MADE IN AUSTRALIA and designed the harsh weather and road conditions of the Australian Nature.



Description



This Under Bonnet Dual Battery Kit for Toyota 300 Series Landcruiser includes everything you need for an easy DIY install.


The Klarmann Toyota LC300 Dual Battery Tray



Fit a 105Ah AGM second battery under your 300 Series Landcruiser bonnet. The start battery gets replaced with a DIN 65 Heavy Duty Battery above 685 CCA. This battery supplies more cranking Amps with smaller installation space and more reliability than your factory start battery. A battery link solenoid mounting bracket is also integrated into this Tray. Midi fuse holders to connect your DCDC Charger plus one additional circuit to each battery are integrated into the battery hold down clamp.

Klarmann Toyota LC300 Dual Battery Tray Kit - Specification



  • Designed for straight fit into Toyota 300 Series Landcruiser
  • Stainless Steel Dual Battery Tray
  • Stainless Steel Battery Hold Down Clamp
  • Stainless Steel Mounting Bracket for Redarc SBI12 Smart Battery Solenoid
  • 2x Twin Midi Fuse Holders mounted to the top bracket
  • 1X Hold down J hook brackets + rubber washers, screws, nuts
  • 1x 30mm Battery Spacer / Separator (Heavy Duty Plastic)



The Klarmann Toyota LC300 Redarc BCDC Mounting Bracket



The Klarmann LC300 BCDC Mounting Bracket enables you to mount a Redarc BCDC Charger behind your front grille. This is the perfect location for your BCDC Charger because during operation the air flow through the radiator will actively cool the charger which enables it to run at peak performance.

Klarmann Toyota LC300 Redarc BCDC Mounting Bracket - Specifications



  • Designed for straight fit into Toyota 300 Series Landcruiser (no drilling needed, uses only factory mounting points)
  • Made out of high quality stainless steel
  • Easy mounting behind grille for peak performance
  • Bracket utilises the factory mounts of the Redarc BCDC series



The Klarmann Solar Input Bracket to Suit SB50 Anderson Plug & Cover



This Klarmann Solar Input Bracket is made out of high quality stainless steel and makes it super easy to connect a solar panel or solar blanket to your DCDC Charger. This Klarmann bracket enables you to easily mount a 50Amp Anderson Plug including the Red Anderson Cover under your bonnet. The Anderson Plug can be connected to a DCDC Charger and that way can be used for solar input.

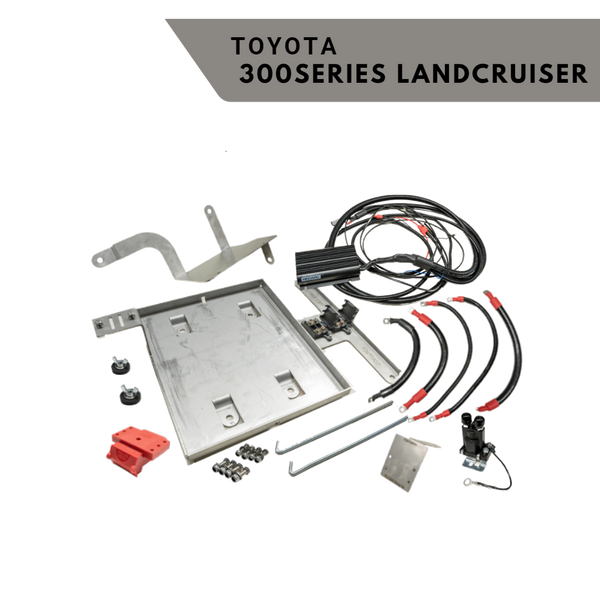

This Complete LC300 Dual Battery Kit Includes



At top of page, choose between:

Redarc BCDC1225D

Including:

  • 4 metes of 4mm twin core cable
  • 6 meters of 8B&S twin
  • Assorted Cable Lugs already crimped to cable & Terminals
  • Assorted Heat shrink already on cable
  • Assorted Non-Split Conduit on cables
  • WFH1 Fuse Holder with 3A Standard Fuse for SBI
  • 2x 40amp midi fuses for BCDC



Redarc BCDC1240D

Including:

  • 4 metes of 4mm twin core cable
  • 6 meters of 6b&s twin
  • Assorted Cable Lugs already crimped to cable & Terminals
  • Assorted Heat shrink already on cable
  • Assorted Non-Split Conduit on cables
  • WFH1 Fuse Holder with 3A Standard Fuse for SBI
  • 2x 60amp midi fuses for BCDC



NOTE: All wiring is pre-made and ready to install!

Make the under bonnet installation of your Dual Battery System super quick, easy and reliable with this Ready to Drive Anywhere Kit.



All Batteries Sold Separately



*** START BATTERY NEEDS TO BE CHANGED TO ANY DIN65 WITH 685+ CCA***

CENTURY ISS ACTIVE AGM DIN65LH MF



SECOND BATTERY OPTIONS

FULL RIVER 105 or any 105Ah AGM (CENTURY C12-105XDA)

Max Dimension: (W)169 x (L)307 x (H)211
