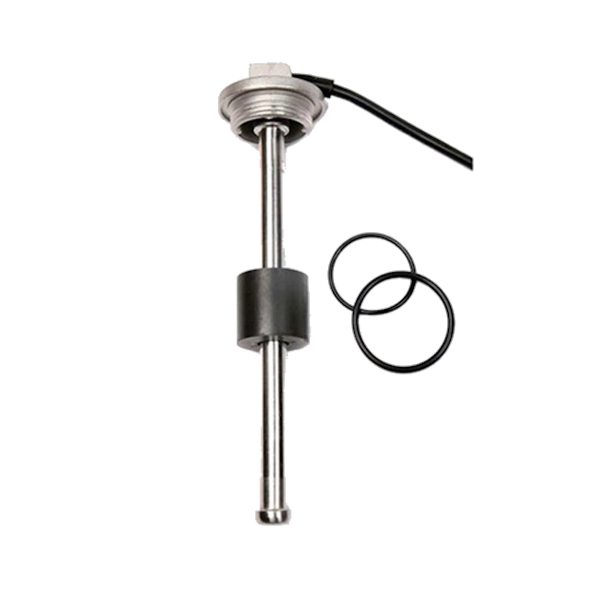

The S3 sender is an innovative solution for monitoring the level of fuel and/or water tanks in boats, trucks, coaches, caravans and recreational vehicles.
With the float as the only moving external part, the S3 is designed with longevity, durability and performance in mind. Constructed in AISI 316 stainless steel it's suitable for a wide range of mediums including, diesel, petrol, oil, potable and grey water.
Mounts via a 1 1/4" BSP (British Standard Pipe Parallel) fitting and can be simply screwed into the top of a matching tank. The connection cable has a sealed entry into the top of the sender for water resistance.
Non corrosive materials in order to withstand the rigors of their operating environment. WEMA take an uncompromising stance on quality; therefore, their level sensors are constructed to meet all applicable ISO, CE, NMMA, ABYC and USCG standards.
Rated 0-190 Ohm - You must match the same Ohms rated senders with gauges.
Length is measured from the underside of the flange to the base of the shaft
Features:
- Mounting type: 1 1/4" BSP thread
- 0-190 Ohm resistance senders
- Suitable replacement for UFW and SUF fuel level sensors
- Medium - diesel, petrol, potable and grey water (not black water)
- Operating voltage - 12/24 VDC
- Material AISI 316 stainless steel
- Operating temperature - -40° to +85°C
- Termination - two flying leads (tinned) 290mm long (sheathed)
- Longer senders available on request
- Find Gauge HERE
Troubleshooting:
To test operation, unscrew the fuel sender, connect two wires to a multimeter, set to resistance and move the float up and down by hand.
A-Sensor: With the float at the bottom it should read 0 ohm and at the top 190 ohm.
