Models

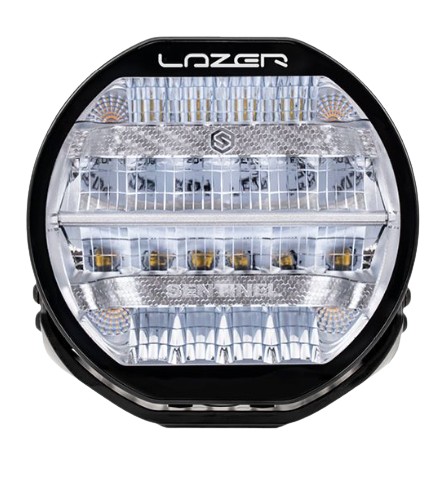

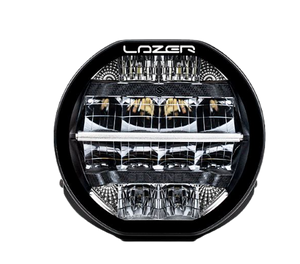

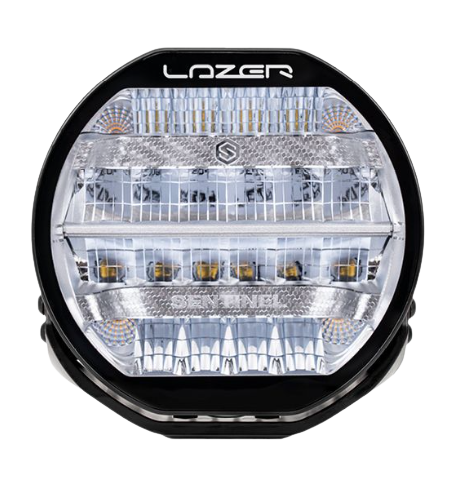

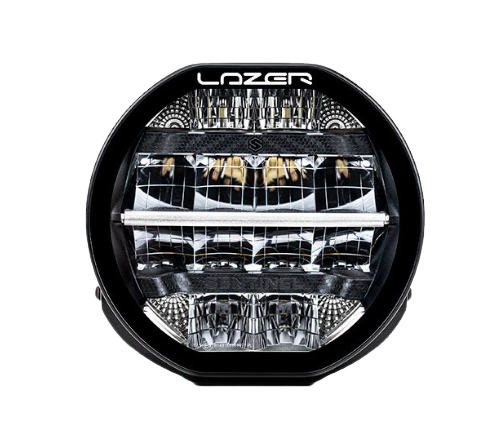

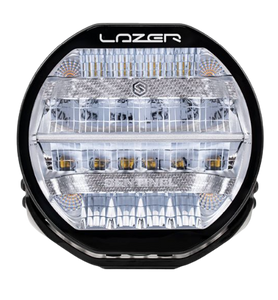

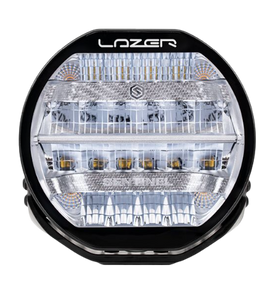

Sentinel 7
A compact 7-inch LED driving light built for performance and durability. Ideal for smaller vehicles or tighter mounting setups, it provides effective long-range visibility while maintaining a sleek, modern appearance.

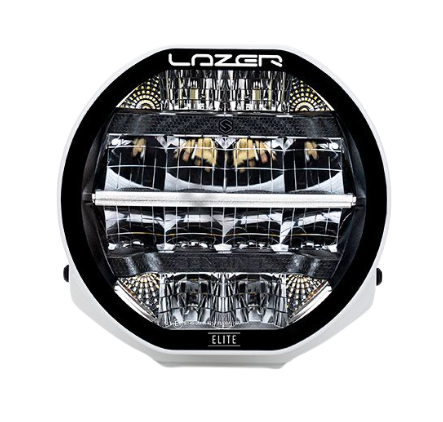

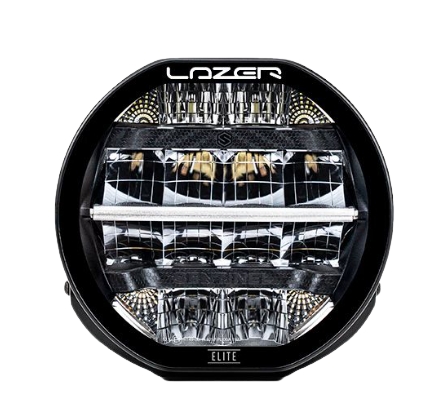

Sentinel 7 Elite with Position Light
An upgraded version of the Sentinel 7, featuring advanced LED technology and a stylish white position light. It delivers superior brightness and beam pattern, making it perfect for demanding road and off-road applications.

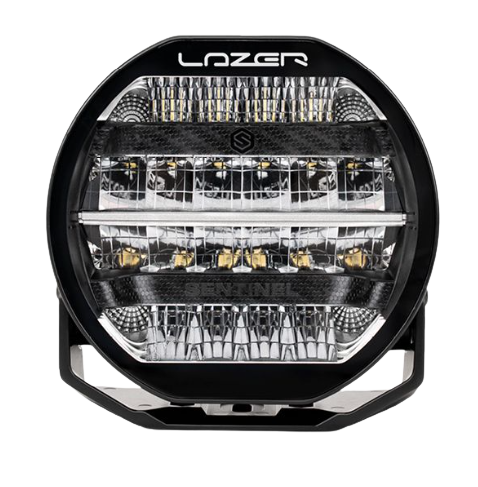

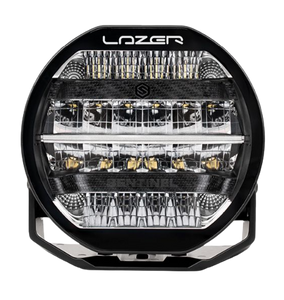

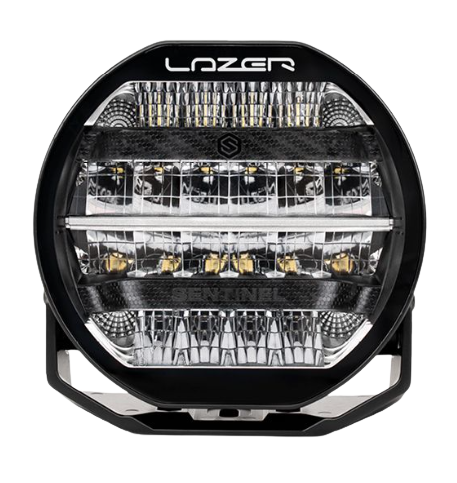

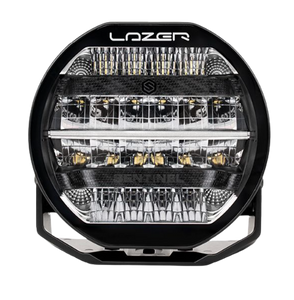

Sentinel 9
A larger 9-inch driving light offering a broader and longer-reaching beam pattern. Great for vehicles needing increased coverage and enhanced nighttime safety.

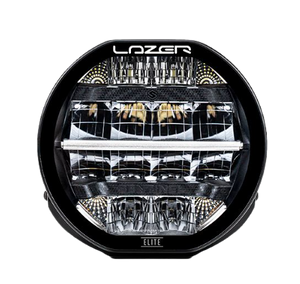

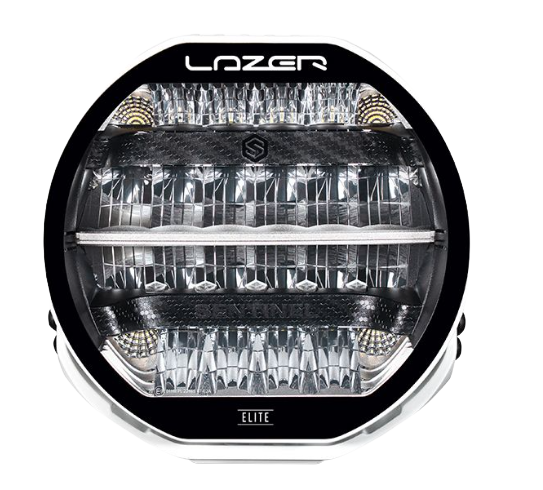

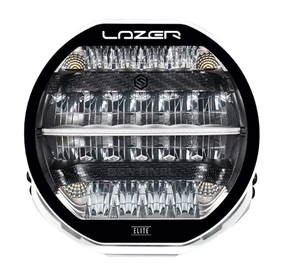

Sentinel 9 Elite
Top-tier 9-inch model with premium components for maximum output and clarity. Designed for high-performance use in harsh environments, delivering unmatched beam reach and definition.

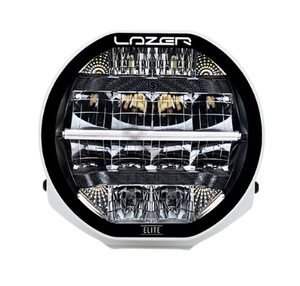

Sentinel 9 Elite with Position Light
Same high-output performance as the 9 Elite, but with an integrated white or amber position light. Adds daytime visibility and styling enhancement while retaining the robust build and elite optics.
Common Features
-
CAI-Optimised Reflector System: Precision beam shaping for focused long-range visibility and wide peripheral illumination.
-
Integrated Position Light (Elite models): Stylish white or amber DRL-style light for added daytime presence and compliance.
-
E-Boost Technology: Switchable between road-legal mode and full-output performance mode.
-
50,000-Hour LED Lifespan: Long-lasting durability for all environments.
-
IP68 Rated: Sealed against dust and water for off-road and weather protection.
-
Aluminum Housing & Polycarbonate Lens: Lightweight yet rugged construction.
-
EMC Approved: Designed to prevent radio/electronic interference.
-
Multi-Voltage (10–32V): Compatible with both 12V and 24V systems.
-
5-Year Warranty: Comprehensive coverage from the manufacturer.
Differences
| Feature |
Sentinel 7 |
Sentinel 7 Elite with Position Light |
Sentinel 9 |
Sentinel 9 Elite |
Sentinel 9 Elite with Position Light |
| Light Output (Raw Lumens) |
2,000 lm |
2,400 lm |
3,000 lm |
3,600 lm |
3,600 lm |
| Beam Distance (0.25 lx) |
500 m |
600 m |
800 m |
900 m |
900 m |
| Horizontal Beam Spread (°) |
~15° |
~15° |
~20° |
~25° |
~25° |
| Position Light |
No |
Yes (White) |
No |
No |
Yes (White or Amber Selectable) |
| Finish |
Black |
Black |
Black |
Black |
Black |
| Peak Current Draw (Amps) |
1.2 |
1.5 |
8.1 |
10.1 |
10.1 |
| Length (mm) |
180 |
180 |
230 |
230 |
230 |
| Mounting Style |
Centre |
Centre |
Centre |
Centre |
Centre |
Wiring Kits
| Model |
Wiring Kit(s) |
| Sentinel 7 |
- 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit – Long (2-Pin, Superseal, 12V) |
| Sentinel 9 |
- 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit – Long (2-Pin, Superseal, 12V) |
| Sentinel 9" Elite |
- 1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit – Long (2-Pin, Superseal, 12V) |
| Sentinel 7" Elite with Position Light |
- 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V) |
| Sentinel 9" Chrome with Position Light |
- 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V) |
| Sentinel 9" Elite with Position Light |
- 1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
- 1 x Two-Lamp Wiring Kit – Mid Power (3-Pin, Superseal, 12V) |
