Product Details

The Power Of Redarc

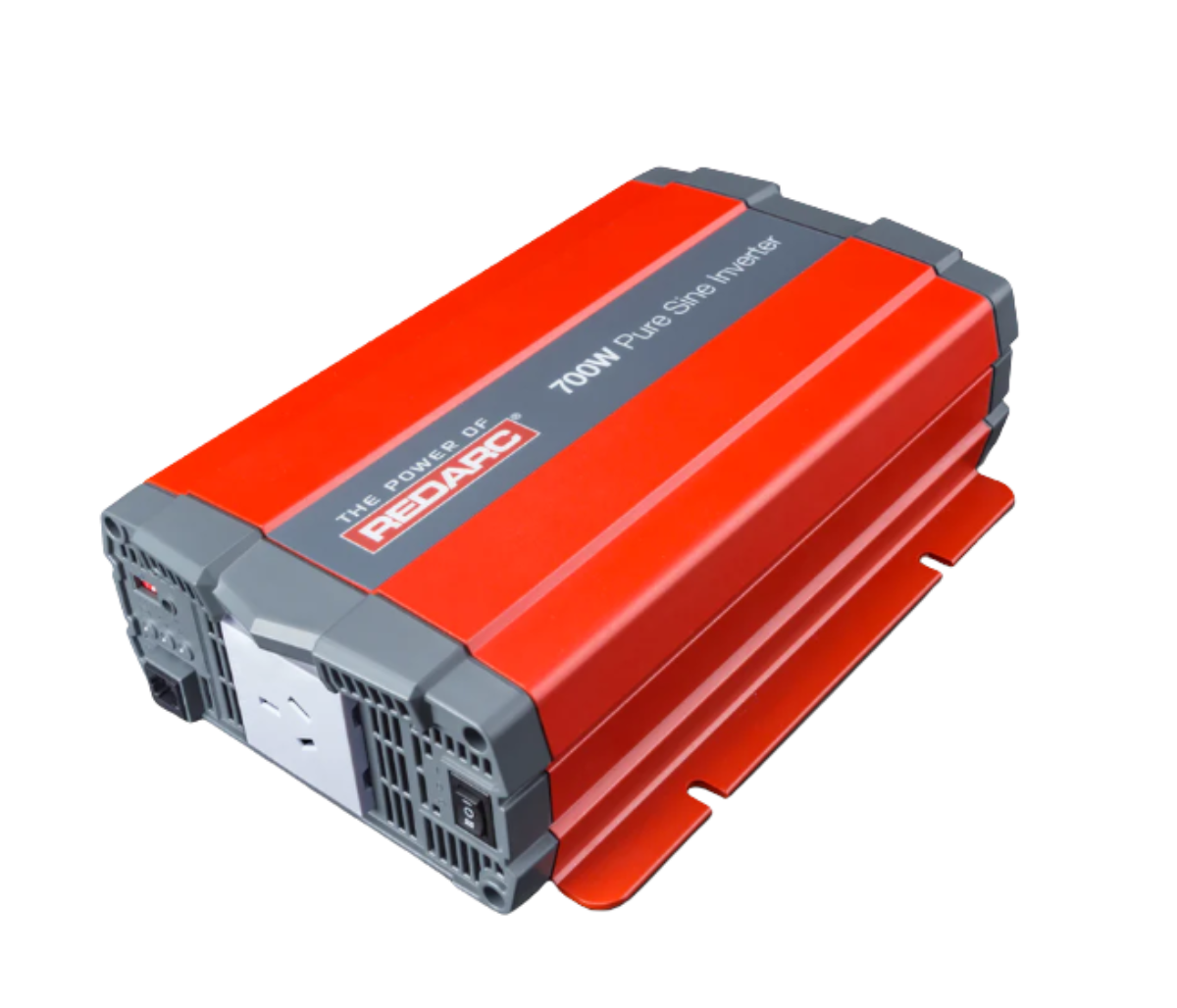

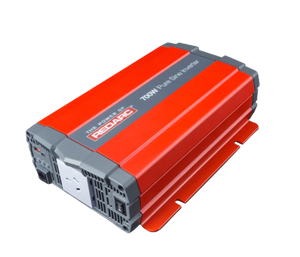

hoto of the Redarc 12V 700W Inverter (Model R-12-700) with a compact design and easy-to-read LED display for monitoring power output | perth pro auto electric parts | autorised redarc reseller

REDARC 700W 12V PURE SINE WAVE INVERTER

Regular price $820.00
R-12-700RS
Unit price  per
GST included. Shipping calculated at checkout.
Regular price $820.00
R-12-700RS
Unit price  per

Looking for a reliable and efficient power solution for your 12V DC applications? Look no further than the Redarc 700W 12V Pure Sine Wave Inverter (part number R-12-700RS).

Redarc 700W 12V Pure Sine Wave Inverter: Clean and Reliable Power Anywhere | Perth Pro Auto





Description



REDARC’s 700W Pure Sine Wave inverter makes it possible to plug in anywhere in Australia and get the type of 240V power you get at home.



Using a Pure Sine Wave output, the 700W inverter will ensure appliances run smoothly and efficiently, producing less heat and noise. Now slimmer and lighter, the REDARC 700W inverter has a wider input voltage in both 12V and 24V models, and works comfortably even in Australia’s harsh conditions.



Run the same devices as the 350W inverter plus TV’s and refrigerant recovery machines with a 700W REDARC Pure Sine Wave Inverter.



The 700W inverter features multiple levels of protection, including overload, short circuit and over-temperature and load controlled cooling fan, which is engaged when power consumption reaches a certain level.



With the REDARC 700W inverter you can take all the comforts of home whilst you travel, without fear of damaging your appliances.



In addition, REDARC has an optional Remote on/off switch (REMOTE-RS), sold separately that allows the control of the inverter from a remote. It is designed so that the inverter can be installed out of sight and allows the control of the inverter from a more convenient location such as the inside of your caravan or campervan. The remote switch can be flush-mounted up to 8 metres away from the inverter.



Features & Benefits



  • Pure sine wave output: provides a clean and stable power supply for sensitive devices, such as laptops, medical equipment, and other electronics.
  • High efficiency: up to 90% efficiency ensures minimal power loss during conversion.
  • Advanced protection features: includes over-voltage, under-voltage, over-temperature, and short-circuit protection to ensure safe operation and protect connected devices.
  • Compact and lightweight: its small size and light weight make it ideal for use in RVs, boats, trucks, and other mobile applications.
  • Easy installation: includes mounting feet and connectors for simple and quick installation.
  • Versatile power supply: provides 230V AC power from a 12V DC source, enabling a wide range of devices to be powered anywhere.
  • Reliable and safe operation: advanced protection features ensure that the inverter operates safely and protects connected devices.
  • Clean and stable power: pure sine wave output ensures that even sensitive electronics receive a stable and clean power supply, reducing the risk of damage or malfunction.
  • Ideal for mobile applications: its compact size and light weight make it ideal for use in mobile applications, such as RVs, boats, and trucks, providing reliable power anywhere.
  • Easy to install: comes with everything you need to install the inverter quickly and easily, saving time and effort.


Specifications



 Input Voltage: 12V DC
Output Voltage: 230V AC
Continuous Power Output: 700W
Peak Power Output: <1230VA
Output Waveform: Pure Sine Wave
Efficiency: Up to 88%
Operating Temperature Range: -20°C to +40°C
Low Voltage Shutdown (10.5V): Yes
High Voltage Shutdown: (16.2V): Yes
Output Overload Protection: Yes
Output Short Circuit Protection: Yes
Output Over Temperature Protection: Yes
Dimensions (mm): 83H x 200W x 330L
Weight: 2.6kg



USER MANUAL

Delivery - Pickup & Shipping



See more information about our pickup and shipping options.


FAQ



What size inverter do I need?

View this INVERTER SELECTION GUIDE from Redarc.



What is the warranty on this product?

This inverter comes with a 2-year product warranty from the manufacturer.
