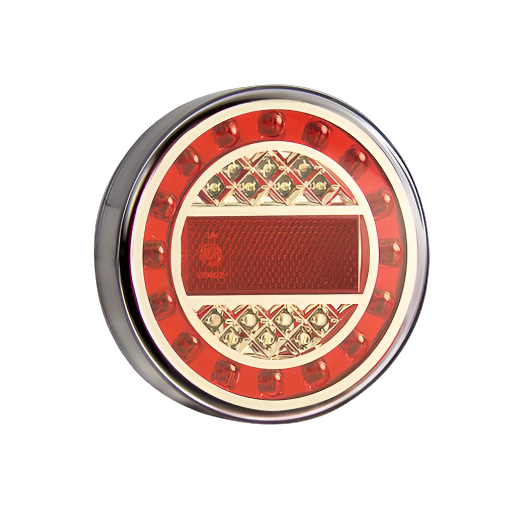

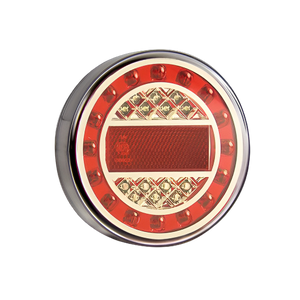

The popular MAXILAMP single stop/tail, indicator, and reflex reflector from LED Autolamps comes with 30 high brightness LED’s and is dust and water proof.

Description

• High Brightness LEDs
• 3M Tape Available
• ADR/ECE approved
• IP67 100% Water proof
• Voltage Range 12-24 Volt
• 7 Year Warranty

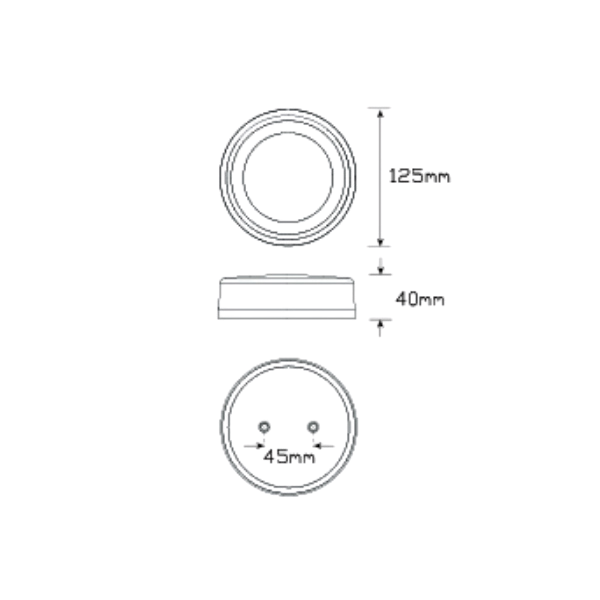

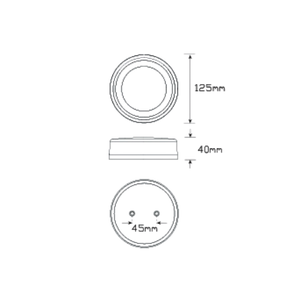

• 125mm Round x 40mm
• Sold Individually

Features/Current:

•  0.34amps at 12 Volt and 0.17amps at 24 Volt Current Draw for Stop function
• 0.07amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
• 0.37amps at 12 Volt and 0.16amps at 24 Volt Current Draw for Indicator function

Other Specifications

• Red and Amber Illumination
• 16 x High Intensity Red LED's and 14 x High Intensity Amber LED's
• Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern and inbuilt Retro Reflector
• Black ABS Plastic Housing with mounting bolts included
• Surface Mount- low mounting depth for easy installation
• Pre-wired 400mm Lead
• Fully encapsulated circuitry
• Sealed against Dust and Moisture
• ECE 02-R1-S1 Rear Stop Lamp specifications approved- CRN 6064
• ECE 01-2a Rear Indicator Lamp specifications approved- CRN 6064
• ECE E9-01-2a Reflector specifications approved- CRN 1472
• Refer to ADR 13/00 for mounting instructions
• Blister Qty: 1
• 5 Year Warranty

LED Autolamps Brand

LED Autolamps is an Australian Owned company that design and manufacture for O/E Companies. They specialise only in LED products and production. Their lamps are airtight, completely sealed and waterproof. They used polycarbonate or acrylic plastics for different applications.

Fitting Instructions

Surface mount using bolts in back of lamp, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.

 Click here to view data sheet.
