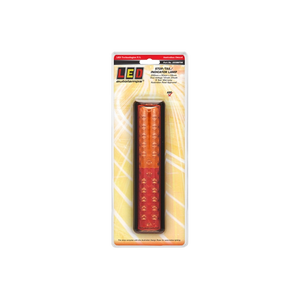

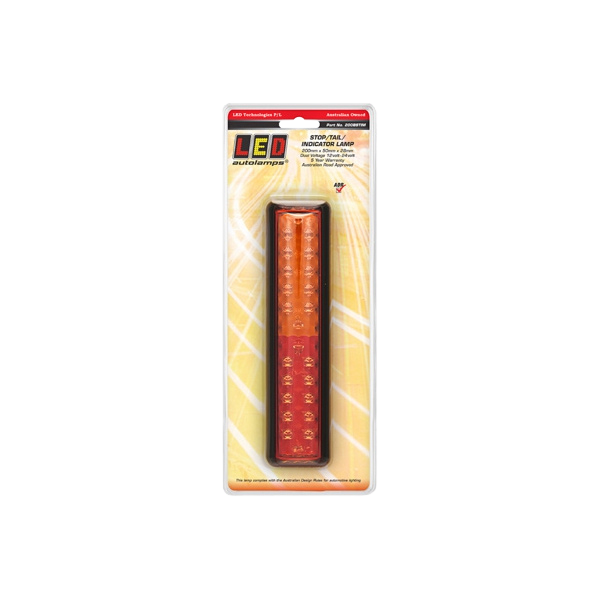

LED AUTOLAMPS LED STOP/TAIL/INDICATOR 200X50X28MM 12-24V | STOP/TAIL/INDICATOR LIGHTS

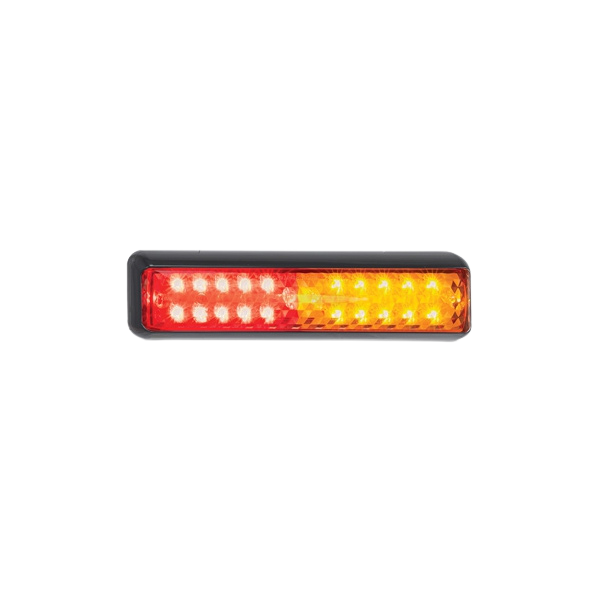

The 200 Series Stop/Tail and Indicator Light from LED Autolamps includes a red and amber LED light. It has a dual voltage of 12V-24V and is 100% waterproof.

Description

• 200 Series LED Combination Stop / Tail / Indicator Lamp 12/24 Volt
• Red and Amber Illumination
• 12 x High Intensity Red LED's and 12 x High Intensity Amber LED's with Red and Amber PCB
• Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
• Black ABS Plastic Housing with mounting screws included
• Surface Mount- low mounting depth for easy installation
• Pre-wired 400mm Lead
• Fully encapsulated circuitry
• Sealed against Dust and Moisture
• 29amps at 12 Volt and 0.16amps at 24 Volt Current Draw for Stop function
• 09amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Tail function
• 19amps at 12 Volt and 0.07amps at 24 Volt Current Draw for Indicator function
• ADR 49/00 Rear Stop Lamp specifications approved- CRN 35785
• ADR 49/00 Rear Tail Lamp specifications approved- CRN 35786
• ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 35784
• Refer to ADR 13/00 for mounting instructions
• Blister Qty: 1
• 5 Year Warranty

Features / Specifications

• Original Rectangular Design
• Clip in replaceable lens
• Available in Black and Chrome bracket
• ADR approved (Except 200BSTIRMB)
• IP67 100% Water proof
• Voltage Range 12-24 Volt

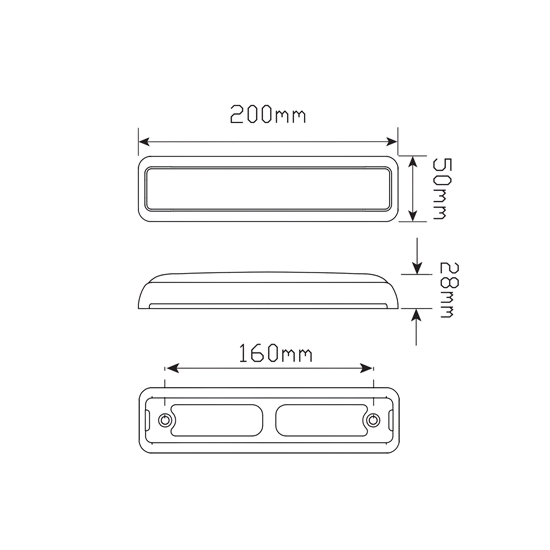

• 200mm x 50mm x 28mm
• Pre-wired, surface mount

Fitting Instructions

Horizontally Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
