The 280 Series from LED Autolamp includes an amber and two red LED lights. This series is suited for a small vehicle/trailer. This lamp complies with ADR under ECE approval.

Description

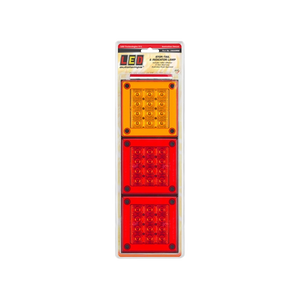

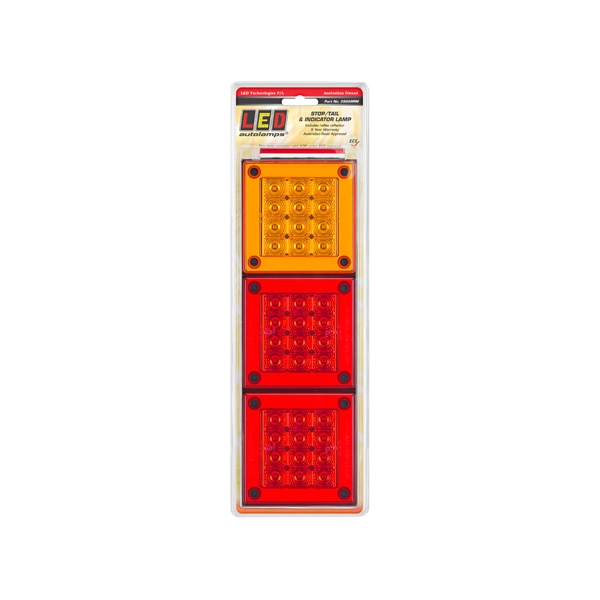

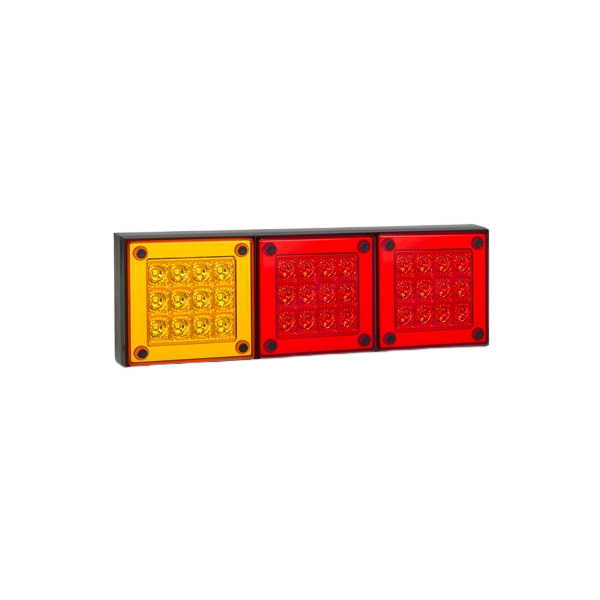

• 280 Series LED Triple Combination Stop / Tail / Indicator Lamp 12/24 Volt
• Small sized Mini Jumbo Lamps
• Includes 2 x Stop /Tail Lamps and 1 x Indicator Lamp Modules
• Red and Amber Illumination
• 12 x High Intensity White LED's in each Stop / Tail Lamps and Indicator Lamp
• Faceted Reflector with Red and Amber Hardened Acrylic pattern free Lens
• Black ABS Plastic Housing with mounting screws caps included
• Surface Mount- low mounting depth for easy installation
• Pre-wired 1.2m Lead
• Fully encapsulated circuitry
• Sealed against Dust and Moisture
• 30amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Stop function
• 04amps at 12 Volt and 0.06amps at 24 Volt Current Draw for Tail function
• 14amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Indicator function
• ADR 49/00 Rear Stop Lamp specifications approved
• ADR 6/00 2A Rear Indicator Lamp specifications approved
• Refer to ADR 13/00 for mounting instructions
• Blister Qty: 1
• 5 Year Warranty

Features / Specifications

• New Design Mini Jumbo
• ECE Approved
• IP67 100% Water proof
• 12-24 Volt
• 5 Year Warranty

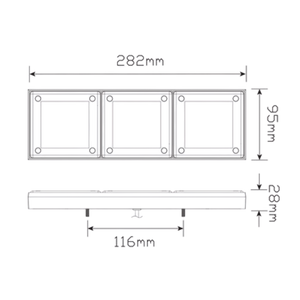

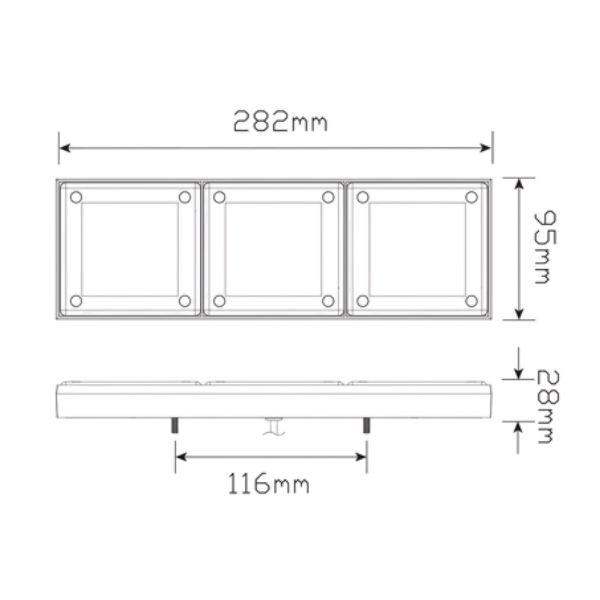

• 282mm x 95mm x 28mm

Fitting Instructions

Surface mount onto flat surface horizontally with stainless steel bolts provided in assembly and run cable through 12mm hole. Please refer to ADR 13/00.

Please find here the brochure.
