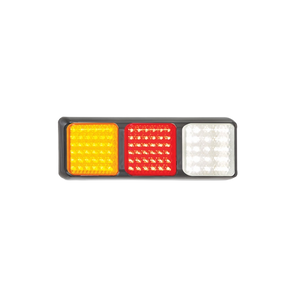

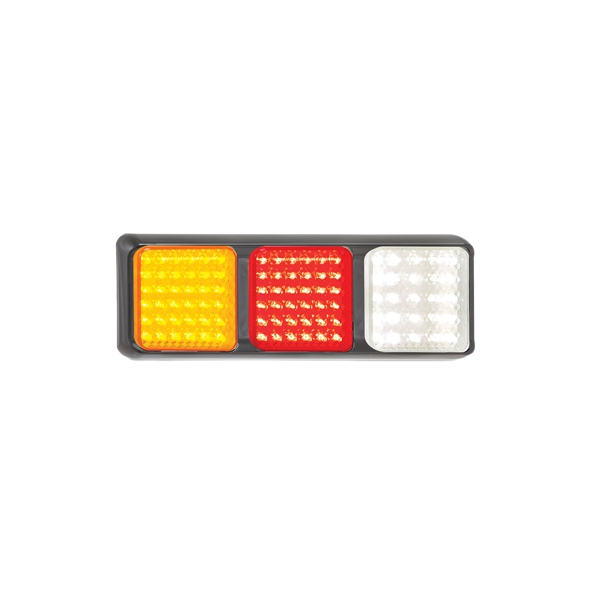

The 80 SeriesTriple Combination from LED Autolamp includes an amber, red and white LED lights. The 80 series suits stop/tail/ indicator/ or reverse lamp options and is pre-wired.
Description
80 Series LED Triple Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Module
Red- Amber and White Illumination
36 x High Intensity White LED's in each Stop / Tail- Indicator Modules and
25 x High Intensity White LED's in the Reverse Lamp Module
Red- Amber and Clear Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
33amps at 12 Volt and 0.25amps at 24 Volt Current Draw for Stop function
06amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
29amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Indicator function
17amps at 12 Volt and 0.21amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specific
Features / Specifications
Individual Lens Replacements
ADR approved
IP67 100% Water proof
12 Volt and 12-24 Volt
5 Year Warranty

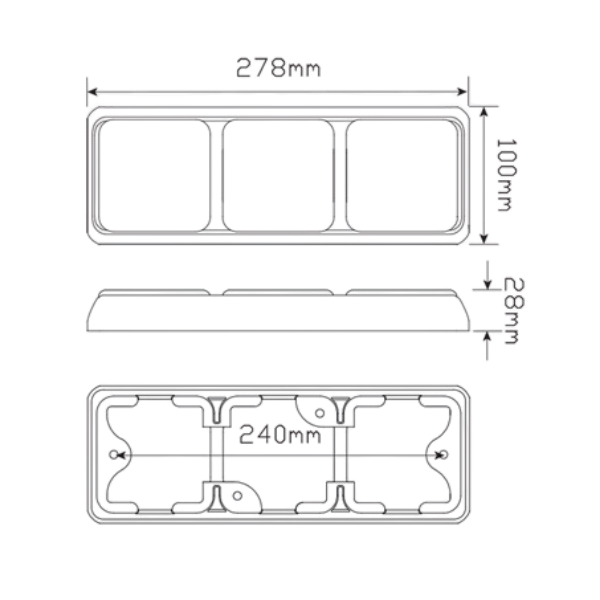

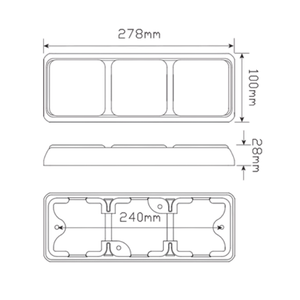

278mm x 100mm x 28mm
Sold Individually
Fitting Instructions
Horizontally mount onto flat surface with screws provided, run wires through back and clip lens into place. Please refer to ADR 13/00
