The 280 Series from LED Autolamp includes a white, amber and red LED lights. This series is suited for a small vehicle / trailer. This lamp complies with ADR under ECE approval.
Description

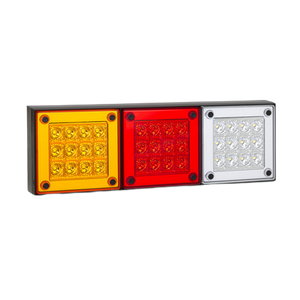

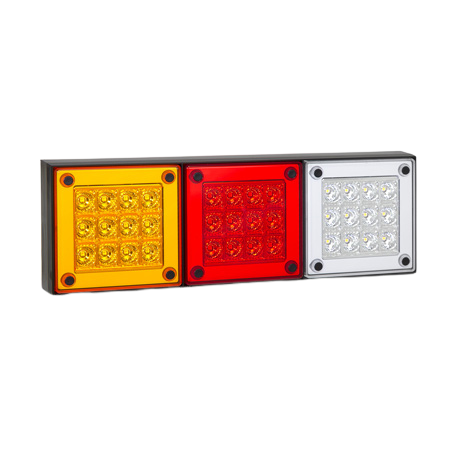

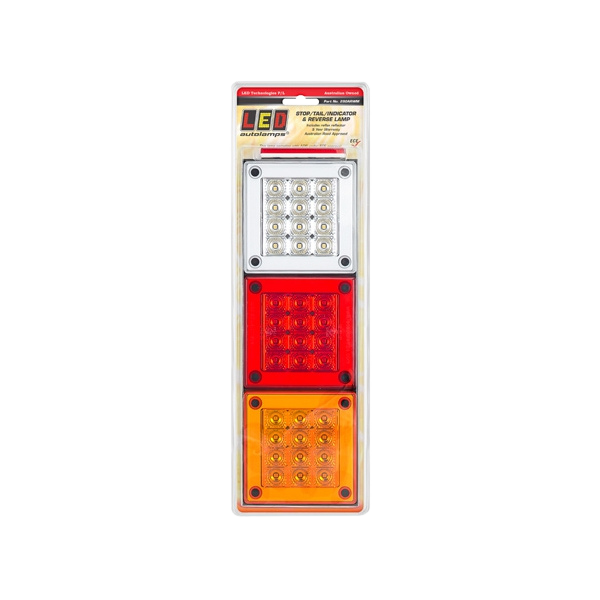

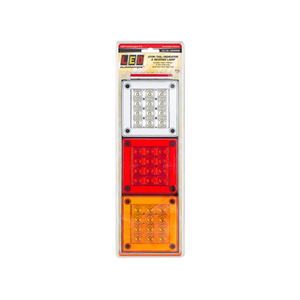

280 Series LED Triple Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Small sized Mini Jumbo Lamps
Includes 1 x Stop /Tail Lamp- 1 x Indicator Lamp and 1 x Reverse Lamp Modules
Red- Amber and White Illumination
12 x High Intensity White LED's in each Stop / Tail Lamps- Indicator and Reverse Lamps
Faceted Reflector with Red- Amber and Clear Hardened Acrylic pattern free Lens
Black ABS Plastic Housing with mounting screws caps included
Surface Mount- low mounting depth for easy installation
Pre-wired 1.2m Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
15amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Stop function
02amps at 12 Volt and 0.03amps at 24 Volt Current Draw for Tail function
14amps at 12 Volt and 0.11amps at 24 Volt Current Draw for Indicator function
17amps at 12 Volt and 0.13amps at 24 Volt Current Draw for Reverse function
ADR 49/00 Rear Stop Lamp specifications approved
ADR 6/00
Sold individually
Features / Specifications
New Design Mini Jumbo
ECE Approved
IP67 100% Water proof
12-24 Volt
5 Year Warranty

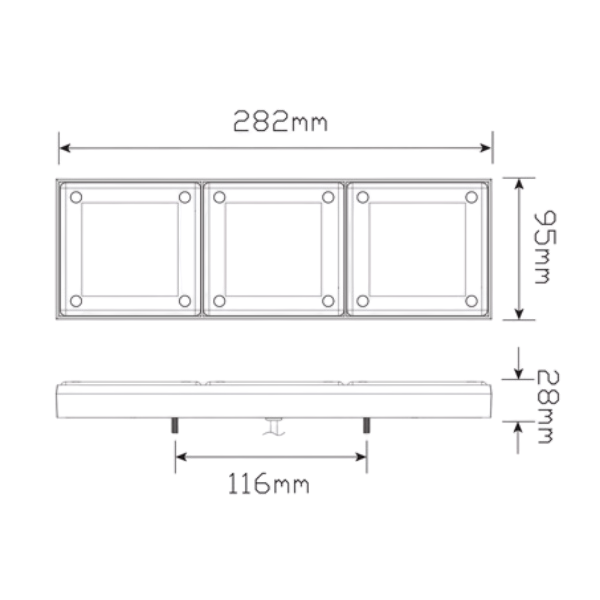

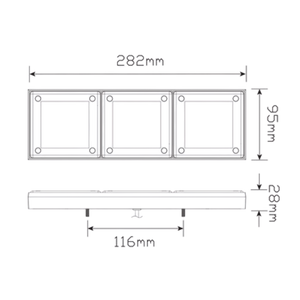

282mm x 95mm x 28mm
Sold Individually
Fitting Instructions
Surface mount onto flat surface horizontally with stainless steel bolts provided in assembly and run cable through 12mm hole. Please refer to ADR 13/00.
