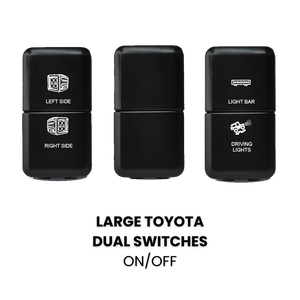

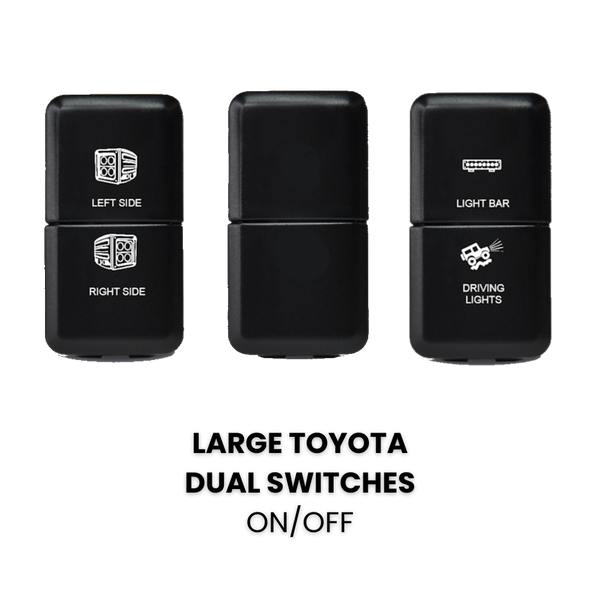

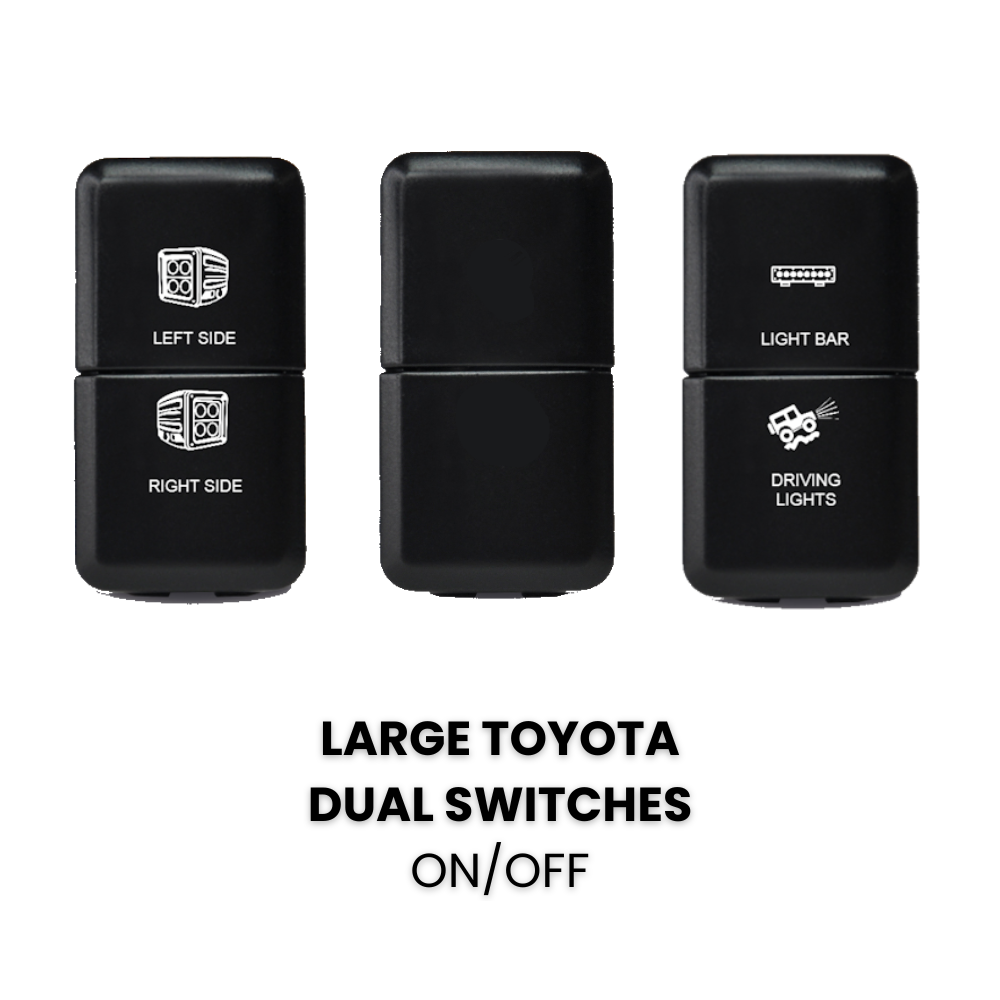

Lightforce Dual switch with a single powered input feeding two independently switched outputs suitable for early model and the 70 Series Toyota vehicles.
Dual coloured illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.
The switches can function independent to the dash lights, however will not illuminate until the vehicles dash lights are activated. A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.
Suitable for use with both positive and negative switched vehicles
This non-genuine OEM style switch has a maximum current rating of 3 amps @ 12 volts and is to be used in conjunction with a relay if current exceeds 3 amps.
Laser engraved icons and text to ensure longevity
Supplied with harness and connector
Australian design patent
VEHICLE COMPATIBILITY
MAKE |
MODEL |
COMPATIBLE FROM |
COMPATIBLE TO |
Toyota |
100 Series Landcruiser |
1998 |
2007 |
Toyota |
4Runner |
2003 |
2009 |
Toyota |
FJ Cruiser |
2007 |
2018 |
Toyota |
Fortuner |
2005 |
2014 |
Toyota |
HiAce |
2005 |
2013 |
Toyota |
Highlander |
2001 |
2007 |
Toyota |
Hilux |
2005 |
2014 |
Toyota |
Kluger |
2001 |
2007 |
Toyota |
Landcruiser 75 76 78 Series |
1985 |
2020 |
Toyota |
Landcruiser 79 (Plastic Dash) Series |
1985 |
Current |
Toyota |
Prado 120 |
2003 |
2009 |
Toyota |
Tacoma |
2005 |
2011 |
Toyota |
Tacoma (Left Side only) |
2012 |
2020 |
Toyota |
Tundra (centre console if equipped) |
2005 |
2006 |
SKU |
SYMBOL/TEXT |
CBSWTYDMTO/Blank |
Dual Blank |
CBSWTYDMTO/Left+RightLights |
Dual (Left & Right Lights) |
CBSWTYDMTO/LightBar+DrivingLights |
Dual (Lightbar & Driving Lights) |
