Our custom made wiring harness is compatible with our National Luna Redarc Battery Box, Power station, Scout, Prospector, Our range of behind the seat kit's, etc. This plug and play harness makes the installation of your portable dual battery box as simple as it gets.
Description

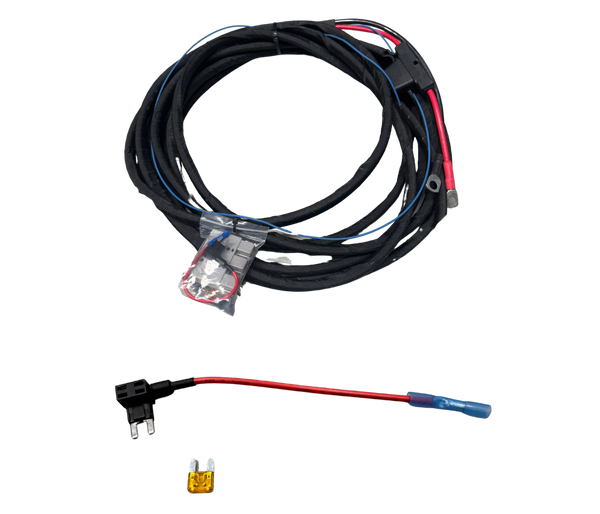

The harness is made from highest quality Australian made Tycab cable. It is 8 meters in length and comes with 10mm eyelet terminals on one side to easily connect to start battery positive & negative. The other side has a genuine Anderson plug attached, that’s easily connected as a vehicle input.
Variants
There are ten options available to suit charging and Ignition preference.
Choose between
- Standard 8B&S or Heavy Duty 6B&S cable
- With or without ignition wire
- Ignition wire fuse type Mini, Low profile mini, Micro 2 & Standard
Standard without Ignition - This twin core 8B&S harness comes with a 40Amp in-line maxi blade fuse & holder and a Two pin 50 amp Anderson plug. Ideal for 25A battery chargers.
Heavy Duty without Ignition - This twin core 6B&S harness comes with a 60Amp in-line maxi blade fuse & holder and a Two pin 50 amp Anderson plug. Ideal for 40 or 50A battery chargers.
Standard with Ignition - This twin core 8B&S & 3mm wire harness comes with a 40Amp in-line maxi blade fuse & holder, Three pin 50 amp Anderson plug, add a circuit fuse holder and fuse. Ideal for 25A battery chargers that also require an ignition wire.
Heavy Duty with Ignition - This twin core 6B&S & 3mm wire harness comes with a 60Amp in-line maxi blade fuse & holder, Three pin 50 amp Anderson plug, add a circuit fuse holder and fuse. Ideal for 40 or 50A battery chargers that also require an ignition wire.
Features / Uses:
The harness can be used for various situations including running power to the rear for a fridge, solar input etc.
The Anderson terminals can be run through the firewall before being clicked into the plug making installation in confined spaces even easier.
It can be used to go from vehicle rear output to caravan or camper & is suitable for marine applications where auxiliary batteries require charge.
