Models

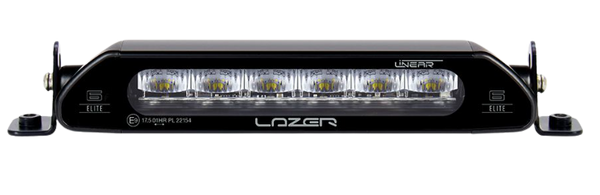

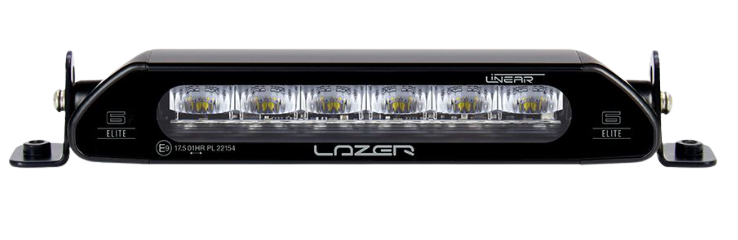

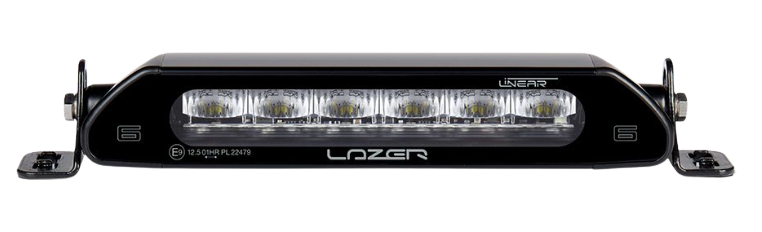

Linear-6 Elite: A compact yet powerful driving light delivering solid performance for smaller vehicles and tight mounting areas. Utilizes a combination of highly efficient 3W LEDs, offering a balance between size and performance. Ideal for passenger vehicles requiring enhanced visibility without compromising on space.

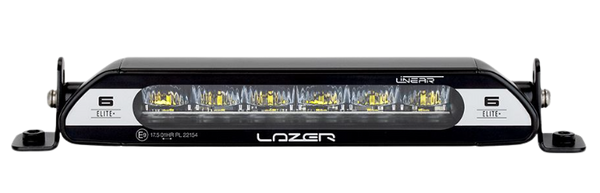

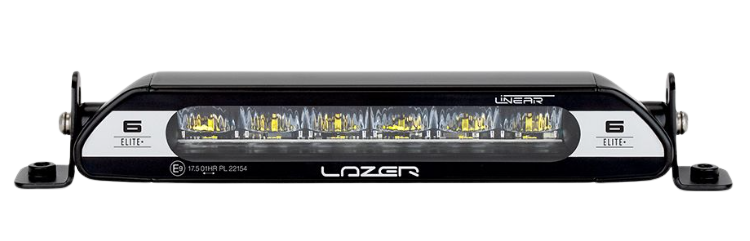

Linear-6 Elite+: Enhanced light output and beam range with elite-grade components, perfect for those seeking maximum output in a compact unit. Operating in Boost mode, it produces 5,100 raw lumens, and in Combo mode, it delivers 7,100 raw lumens, representing incredible lighting performance for its size.

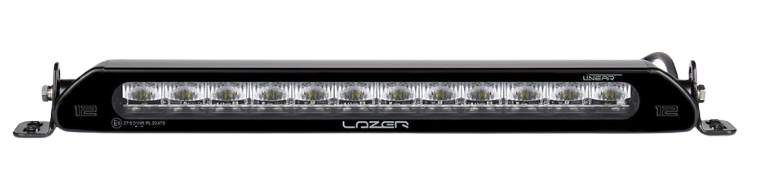

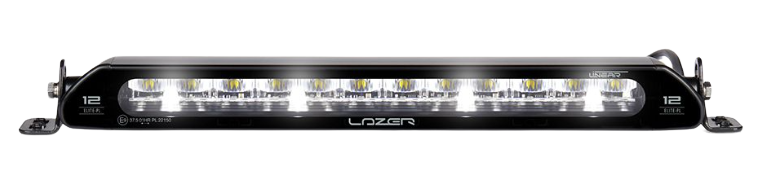

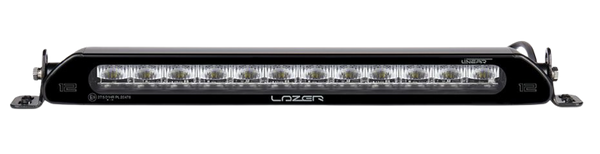

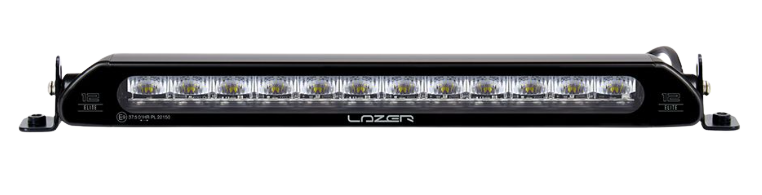

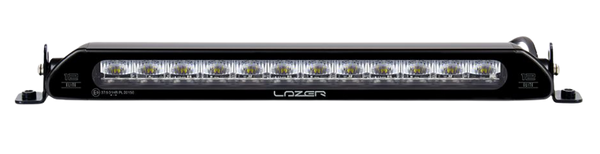

Linear-12 Elite: Slightly larger for broader coverage, offering strong illumination and road-legal compliance. Designed and manufactured in the UK, it boasts 8,100 raw lumens and a beam distance of 796 meters. Features a wide beam pattern with horizontal and vertical spreads of 64º and 15º, respectively.

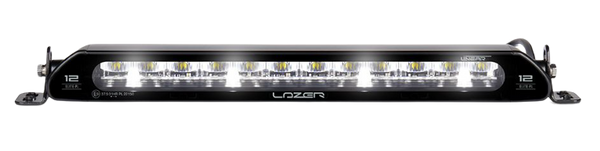

Linear-12 Elite with Position Light: Adds an integrated position light function, providing added safety and styling benefits. Offers the same performance as the standard Linear-12 Elite but with the added feature of a position light.

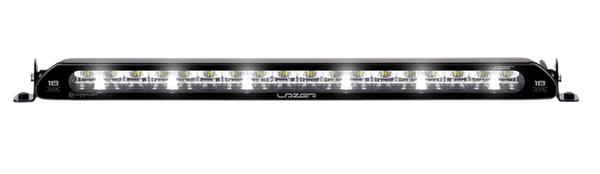

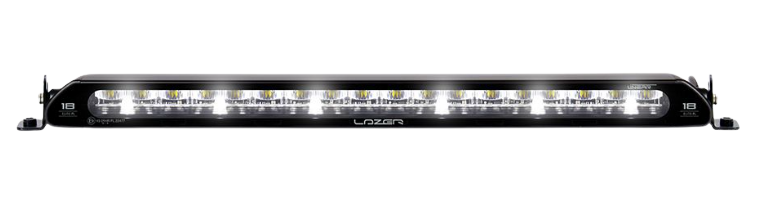

Linear-18 Elite: A versatile LED light bar suitable for passenger vehicles. Utilizes a combination of 36x highly efficient 3W LEDs, delivering a finely-tuned beam pattern optimized for road use. Produces 9,000 raw lumens with a beam distance of 975 meters.
Linear-18 Elite with Position Light: Offers the same performance as the standard Linear-18 Elite but with the added feature of an integrated position light function. Provides added safety and styling benefits, making it ideal for various applications.

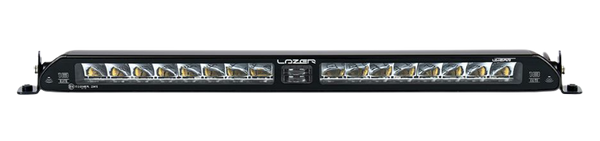

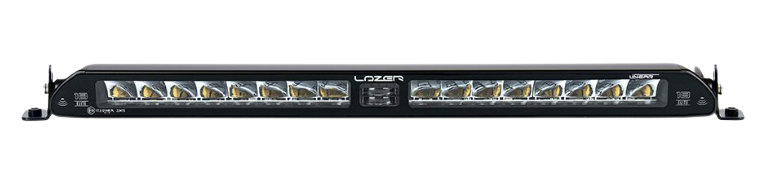

Linear-18 Elite with Intelligent Low Beam Assist (i-LBA): A world-first, utilizing patent-pending technology, this model redefines the performance and functionality of auxiliary LED driving lights. Equipped with photoelectric sensors, it automatically adjusts the light output to prevent glare to oncoming traffic, enhancing safety and driving comfort.

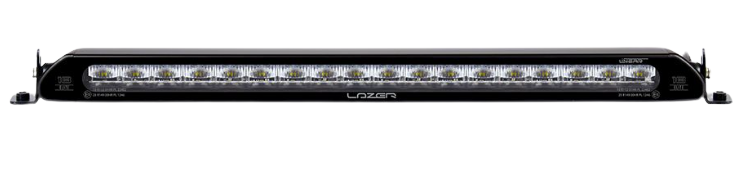

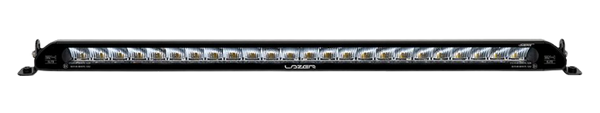

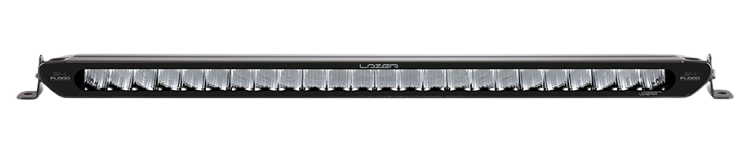

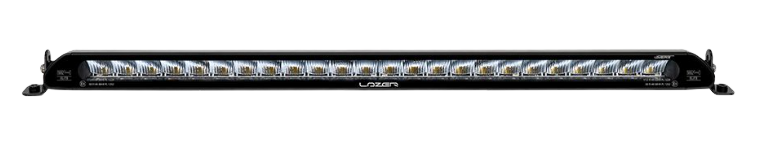

Linear-24 Elite: Broad, long-distance lighting solution for wide vehicles or commercial setups. Offers outstanding lighting performance optimized for heavy machinery and commercial vehicles. Features a wide beam pattern with horizontal and vertical spreads of 64º and 15º, respectively.

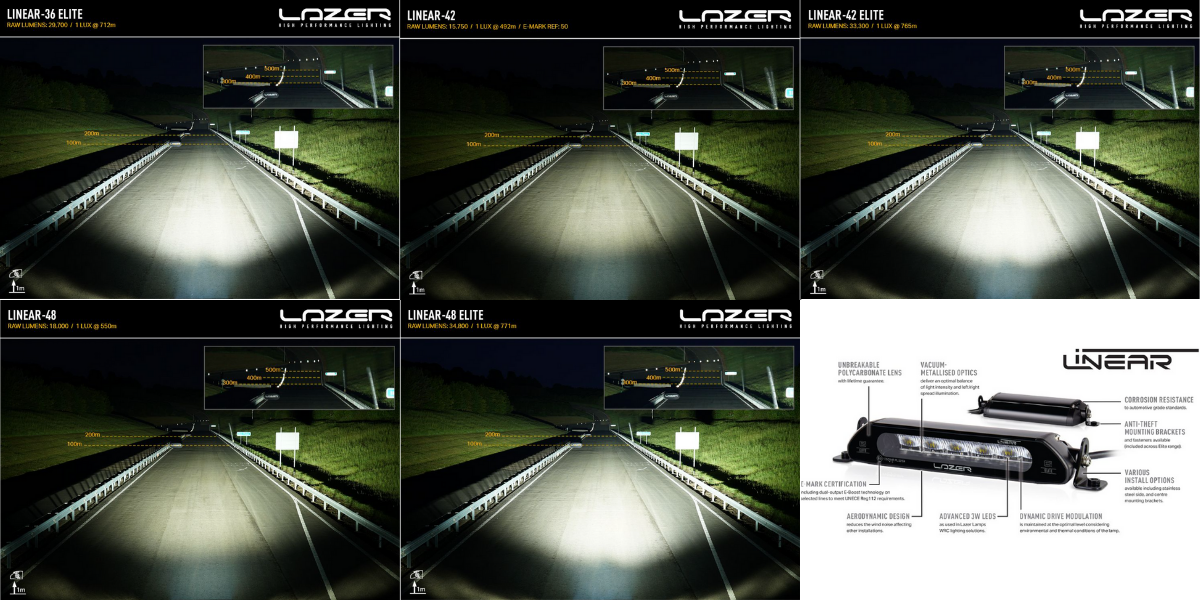

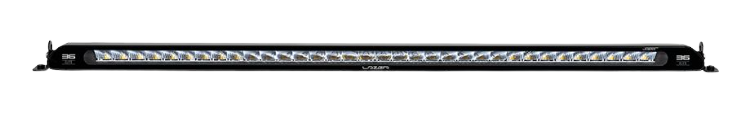

Linear-36 Elite: High-output LED light bar delivering extended beam distance and wide coverage. Produces 29,700 raw lumens with a beam distance of 1,423 meters. Features a wide beam pattern with horizontal and vertical spreads of 64º and 15º, respectively.
Linear-42 Elite: Offering a balance between size and performance, this model is suitable for a wide range of vehicles and applications requiring extended illumination. Produces 33,300 raw lumens with a beam distance of 1,530 meters. Features a wide beam pattern with horizontal and vertical spreads of 60º and 15º, respectively.

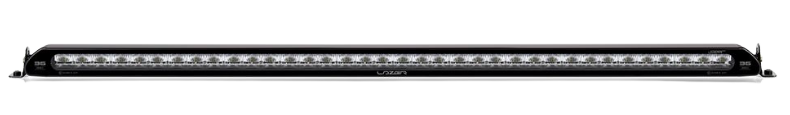

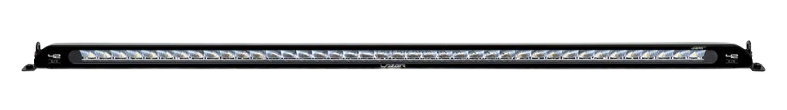

Linear-48 Elite: The flagship model of the Linear series, delivering maximum light output and beam reach. Produces 34,800 raw lumens with a beam distance of 1,543 meters. Features a wide beam pattern with horizontal and vertical spreads of 60º and 15º, respectively.
Common Features
-
CAI-Optimised Reflector System: Precision beam pattern design for optimal reach and spread.
-
Intelligent Low Beam Assist (i-LBA): Automatically adjusts high beam intensity based on ambient light (Elite i-LBA models only).
-
Integrated Beacon Mode: Selectable white/amber strobe (Beacon model only).
-
E-Boost Technology: Dual output modes for full or ECE-compliant brightness (removable cap).
-
50,000-Hour LED Lifespan: Long-term durability across all conditions.
-
IP67/IP69K Rated: Fully sealed and pressure-wash resistant.
-
Aluminum Housing & Polycarbonate Lens: Tough build with a lightweight chassis and shatterproof lens.
-
EMC Approval: Meets automotive electromagnetic compatibility standards.
-
Multi-Voltage (10–32V): Flexible installation on 12V and 24V vehicles.
-
5-Year Warranty: Manufacturer-backed reliability and peace of mind.
Differences
| Feature |
Linear-6 |
Linear-6 Elite |
Linear-6 Elite+ |
Linear-12 |
Linear-12 Elite |
Linear-12 Elite with Position Light |
Linear-18 |
Linear-18 Elite |
Linear-18 Elite with Position Light |
Linear-18 Elite+ |
Linear-18 Elite with Intelligent Low Beam Assist |
Linear-24 Flood |
Linear-24 Elite |
Linear-36 |
Linear-36 Elite |
Linear-42 |
Linear-42 Elite |
Linear-48 |
Linear-48 Elite |
| Light Output (Raw Lumens) |
3,600 lm |
4,500 lm |
7,100 lm |
4,500 lm |
8,100 lm |
8,100 lm |
6,000 lm |
10,800 lm |
10,800 lm |
21,000 lm |
21,000 lm |
16,200 lm |
16,200 lm |
18,000 lm |
18,000 lm |
21,000 lm |
21,000 lm |
24,000 lm |
24,000 lm |
| Beam Distance (0.25 lx) |
300 m |
400 m |
500 m |
400 m |
796 m |
796 m |
500 m |
1,000 m |
1,000 m |
1,200 m |
1,200 m |
1,500 m |
1,500 m |
1,600 m |
1,600 m |
1,800 m |
1,800 m |
2,000 m |
2,000 m |
| Beam Pattern |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
Flood |
Flood |
Wide |
Wide |
Wide |
Wide |
Wide |
Wide |
| Mounting Style |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
Centre |
| Integrated Position Light |
No |
No |
No |
No |
No |
Yes |
No |
No |
Yes |
No |
No |
No |
No |
No |
No |
No |
No |
No |
No |
| Intelligent Low Beam Assist |
No |
No |
No |
No |
No |
No |
No |
No |
No |
No |
Yes |
No |
No |
No |
No |
No |
No |
No |
No |
| Connector Type |
2-pin |
2-pin |
2-pin |
3-pin |
3-pin |
3-pin |
3-pin |
3-pin |
3-pin |
3-pin |
3-pin |
4-pin |
4-pin |
4-pin |
4-pin |
4-pin |
4-pin |
4-pin |
4-pin |
| Length (mm) |
230 |
230 |
230 |
266 |
266 |
266 |
340 |
340 |
340 |
340 |
340 |
405 |
405 |
405 |
405 |
405 |
405 |
405 |
405 |
| Weight (kg) |
0.495 |
0.495 |
0.495 |
0.800 |
0.800 |
0.800 |
1.090 |
1.090 |
1.090 |
1.090 |
1.090 |
1.200 |
1.200 |
1.300 |
1.300 |
1.400 |
1.400 |
1.500 |
1.500 |
| Current Draw (Amps) |
1.5 |
2.9 |
1.8-5.1 |
2.9 |
5.8 |
5.8 |
4.4 |
9 |
8.8 |
2.7-14.1 |
3.2-10.4 |
11.7 |
14.4 |
8.8 |
21.4 |
10.2 |
24.7 |
11.7 |
25.3 |
| Dual Output Mode (E-Boost) |
No |
No |
Yes |
No |
Yes |
Yes |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Notes:
-
Linear-6 Elite+: Offers enhanced light output with 12 white LEDs and 6 yellow LEDs, providing up to 7,100 raw lumens in Combo mode.
-
Linear-12 Elite: Delivers 8,100 raw lumens with 12 high-power LEDs, featuring a wide beam pattern suitable for various applications.
-
Linear-12 Elite with Position Light: Includes an integrated position light function, adding safety and styling benefits.
-
Linear-18 Elite: Equipped with 36 high-efficiency LEDs, providing 10,800 raw lumens and a wide beam pattern.
-

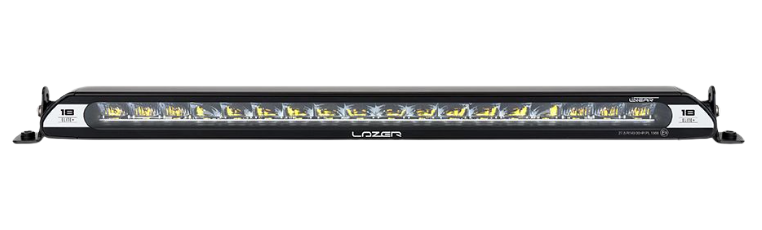

Linear-18 Elite+: Features 36 white LEDs and 18 yellow LEDs, offering up to 21,000 raw lumens in Combo mode for superior
Wiring Kits
| Model |
Wiring Kit(s) |
| Linear-6 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-6 Elite |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-6 Elite+ |
1 x Single-Lamp Wiring Kit with Momentary Switch (3-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit with Momentary Switch (3-Pin, Superseal, 12V) |
| Linear-12 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-12 Elite |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-12 Elite with Position Light |
1 x Single-Lamp Wiring Kit (3-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (3-Pin, Superseal, 12V) |
| Linear-18 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-18 Elite |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit - Mid Power (2-Pin, Superseal, 12V) |
| Linear-18 Elite with Position Light |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Two-Lamp Wiring Kit - Mid Power (2-Pin, Superseal, 12V) |
| Linear-24 Flood |
1 x Single-Lamp Wiring Kit (2-Pin, Deutsch DT, 12V) |
| Linear-24 Elite |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V) |
| Linear-36 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V) |
| Linear-42 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V) |
| Linear-48 |
1 x Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)
1 x Single-Lamp Harness Kit - Long (2-Pin, Superseal, 12V) |
