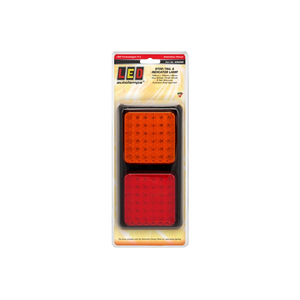

The 80 Double Series from LED Autolamp includes an amber and red LED lights. This product from 80 series suits stop/tail/ and indicator lamp options and is pre-wired.
Description
- 80 Series LED Double Combination Stop / Tail / Indicator Lamp 12/24 Volt
- Includes 1 x Stop /Tail Lamp and 1 x Indicator Lamp Module
- Red and Amber Illumination
- 36 x High Intensity White LED's in each Stop / Tail and Indicator Lamp Modules
- Red and Amber Optical Hardened Acrylic Lens with unique Hexagonal lens pattern
- Black ABS Plastic Housing with mounting screws included
- Surface Mount- low mounting depth for easy installation
- Pre-wired 400mm Lead
- Fully encapsulated circuitry
- Sealed against Dust and Moisture
- 33amps at 12 Volt and 0.25amps at 24 Volt Current Draw for Stop function
- 06amps at 12 Volt and 0.04amps at 24 Volt Current Draw for Tail function
- 31amps at 12 Volt and 0.22amps at 24 Volt Current Draw for Indicator function
- ADR 49/00 Rear Stop Lamp specifications approved- CRN 33059
- ADR 6/00 2A Rear Indicator Lamp specifications approved- CRN 33098
- Refer to ADR 13/00 for mounting instructions
- Sold Individually
- 5 Year Warranty
Features / Specifications
- High Brightness LEDs
- Individual Lens Replacements
- ADR approved
- IP67 100% Water proof
- 12 Volt or 12-24 Volt
- 5 Year Warranty
- 188mm x 100mm x 28mm
- Black Bracket
Fitting Instructions
Surface mount onto flat surface horizontally using screws, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
