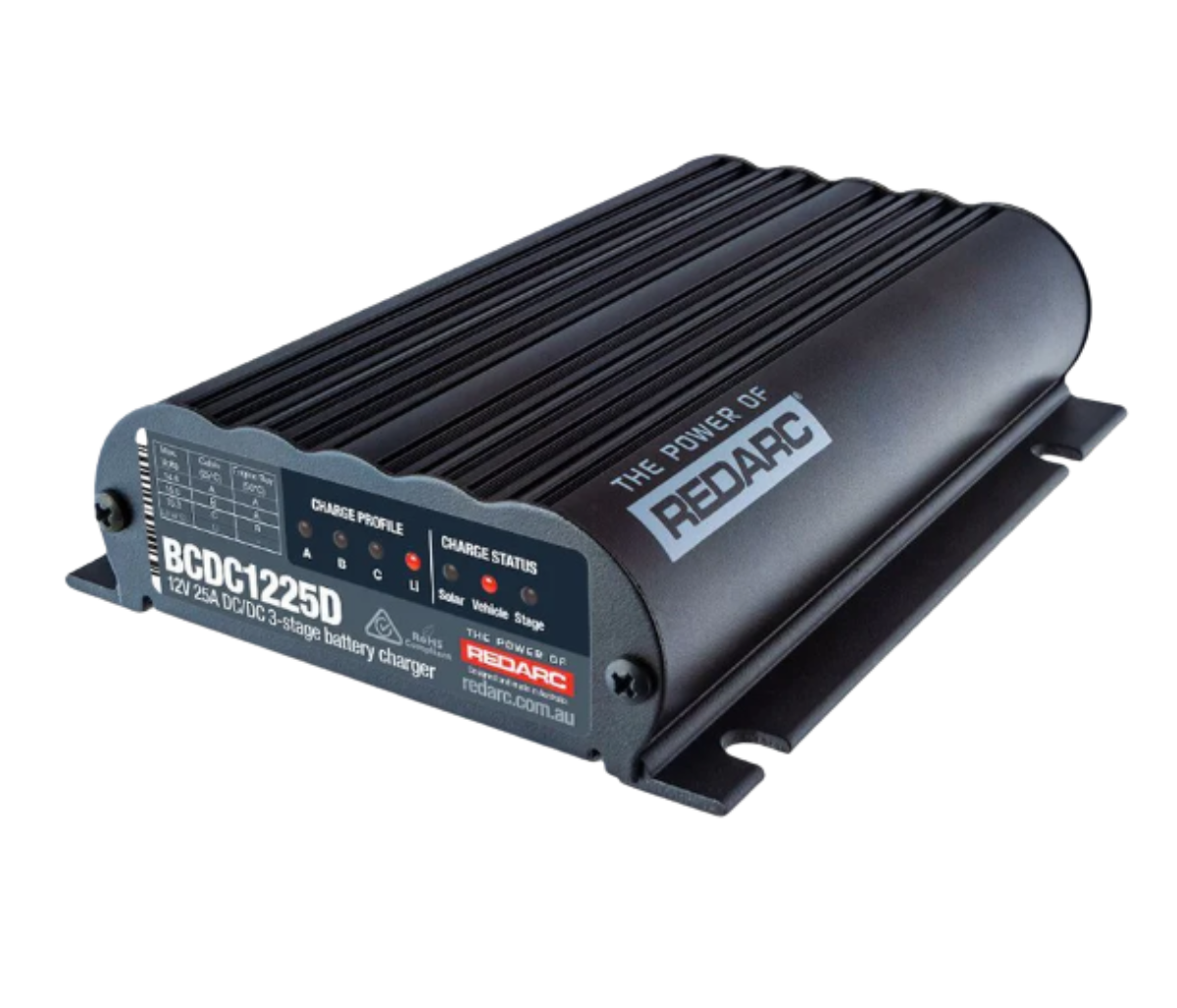

The REDARC BCDC1225D is a 12V 25A In-vehicle DC to DC battery charger. It features the next generation in REDARC DC to DC in-vehicle charging technology, charging from Solar and DC inputs simultaneously with additional features that make it the most advanced dual battery charger on the market.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D will charge from both solar and the alternator simultaneously. And, with built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1225D features the same patented charging profiles as it is predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.
For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH.
Green Power Priority
Green Power Priority is used to describe the priority given to a solar input when charging an auxiliary battery in your vehicle. For example, if a solar power input is available the maximum available solar power will be used before topping up the output charge current from another power source. Priority is given to the solar input then to AC Mains power (where applicable), then to DC Vehicle Power, the advantage of this is that it places less load on the alternator.
Proven and Tested
The award-winning technology in the BCDC has been independently verified and tested to ensure battery life is maximised, charging your battery to a proven 100%.
Trusted for its Australian design and tested for our unique conditions, the DC to DC battery charger will work in the extreme heat of the Simpson Desert, up to 80 C and can handle deep water crossings at Cape York water, dust and vibration are no match for this charger.
If you are heading out into the bush and want to get there and back again safely you can trust REDARC.
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries
|Input (Operating) Voltage||9 - 32VDC|
|Output System Voltage||12VDC|
|Maximum Charging Voltage||15.3V|
|Output Current Rating (Cont.)||25A|
|Input Current (Max.)||25A|
|Input Fuse Rating||40A|
|Output Fuse Rating||40A|
|Standby Current Draw||<100mA|
