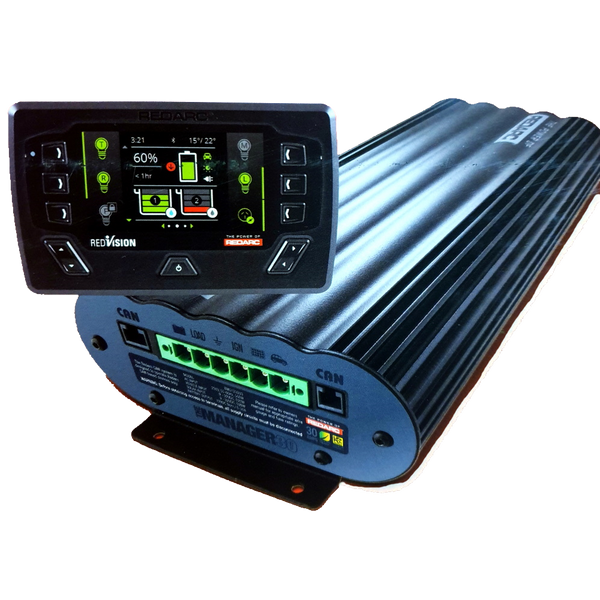

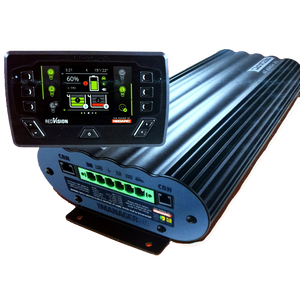

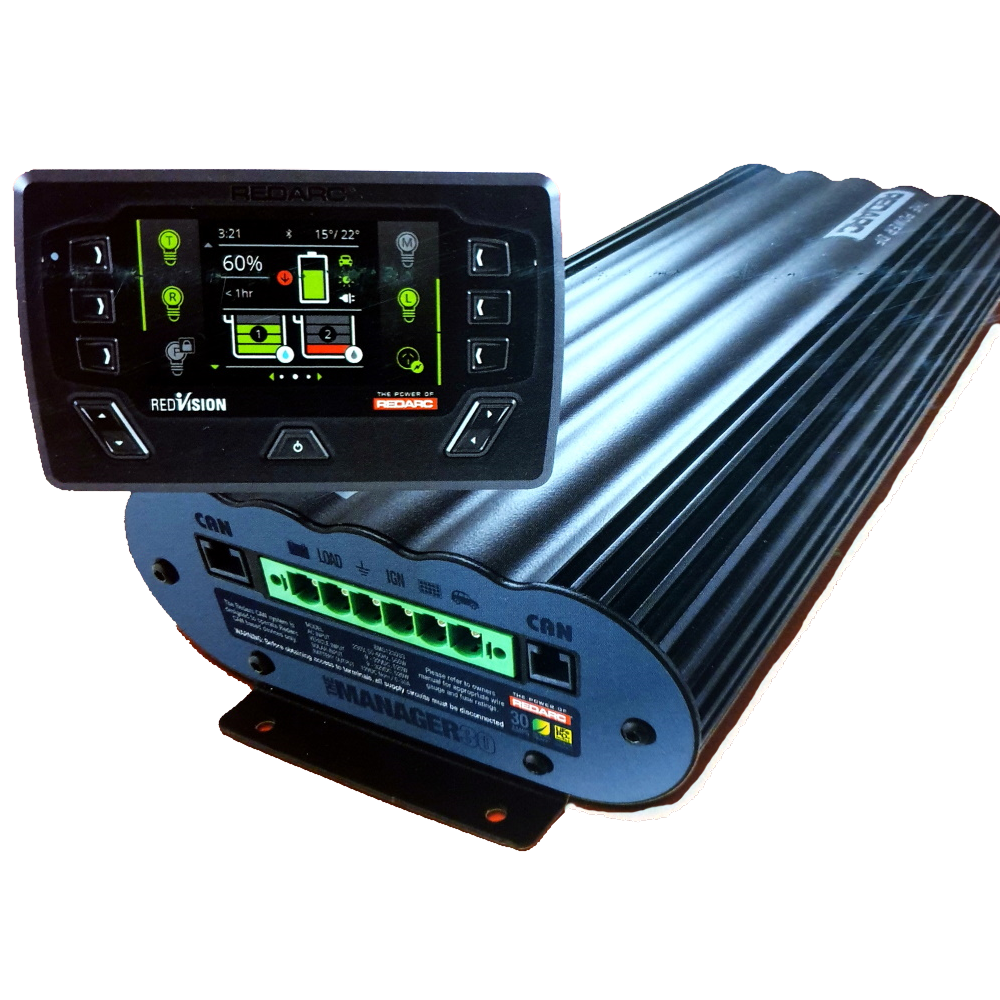

Redarc BMS1230S3R Battery Management System 30Amp The Manager with Redvision Screen | DC Chargers/Managers | Perth Pro Auto Electric Parts
Redarc BMS1230S3R Battery Management System 30Amp The Manager with Redvision Screen | DC Chargers/Managers | Perth Pro Auto Electric Parts
Redarc BMS1230S3R Battery Management System 30Amp The Manager with Redvision Screen Display | DC Chargers/Managers | Perth Pro Auto Electric Parts
Redarc BMS1230S3R Battery Management System 30Amp The Manager with Redvision Screen Packaging | DC Chargers/Managers | Perth Pro Auto Electric Parts

REDARC BMS1230S3R BATTERY MANAGEMENT SYSTEM 30AMP THE MANAGER WITH REDVISION SCREEN

Regular price $2,149.00
BMS1230S3R
Unit price  per
GST included. Shipping calculated at checkout.
Regular price $2,149.00
BMS1230S3R
Unit price  per

The Redarc Manager30 w/ RedVision Display is a 30A Battery Management System designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs, ideal for recreational vehicles, caravans, and camper trailers with multiple battery banks.

Redarc The Manager 30 is the top choice of DC chargers/managers summarising 6 products in 1 | Perth Pro Auto



Description

The new REDARC Manager30 S3 is a 30A state-of-the-art battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs, ideal for recreational vehicles, caravans, and camper trailers with multiple battery banks.

The next generation Manager30 S3 model is the complete battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery.

Developed with ease of installation in mind, The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators.

Whether you are charging Lead Acid, Gel, Calcium, AGM or Lithium Iron Phosphate Batteries, The Manager30 represents a complete DC to DC charging and maintenance solution. If you are charging one auxiliary battery or more, The Manager30 will ensure they are always fully charged, providing peace of mind when battery charge provides the power source for the comforts of home whilst travelling around Australia.

The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240 volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor, making it market leading.

The Display

The main difference of this product (BMS1230S3R) and our other Manager30 product (VMS1230S3) is that this is complete with RedVision Display. The Manager30 BMS1230S3R features both the RedVision display screen and mobile phone connectivity for complete battery management for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery. The Manager30 comes with a display designed to give you house battery information and charge status along with critical system information while charging is in progress. With the display, you can customise how your house battery is charged and monitor where the charge is coming from, keeping you in control at all times.

The display can be surface mounted on a wall or recessed (into the dashboard of an RV for example). The display also allows a Bluetooth connection to your Smartphone, via the RedVision App, which provides the same data and control available on the display all in the palm of your hand.

Charging Lithium Batteries

Lithium batteries have improved storage capacity relative to size and weight. They do however require specific charging conditions in order to operate correctly and the battery itself must have an in-built cell management system. REDARC have designed a charging profile within The Manager30 to complement these in-built systems.

Green Power Priority

The Manager30 is designed to charge an auxiliary battery from multiple sources simultaneously. If 12 volt solar power is available, solar power will be used before topping up the output charging current from another source mains (if available) or DC vehicle power when on the move.

MPPT Solar Regulator

The built-in Maximum Power Point Tracking (MPPT) solar regulator allows The Manager30 to deliver the maximum amount of power from portable solar panels, even during low light conditions.

Remote Monitor

Designed to show you auxiliary battery information and charge status. You can customise how your battery is charged and monitor where the charge is coming from. A user-friendly, graphical display monitor lets you know what is going on, keeping you in control at all times.

Features

  • Multi Stage AC-DC Battery Charger
  • Multi Stage DC to DC Charger
  • Maximum Power Point Tracking Solar Regulator
  • Battery Monitor
  • Dual Battery Isolator
  • Load Disconnect Controller
  • Super quiet operation
  • Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
  • Tested to mains power safety standards in Australia

Specifications

Output System Voltage

12VDC

Maximum Charging Voltage

16.0V* (*Calcium setting in storage mode)

Output Current Rating (Cont.)

30A

Output Power

520W

Input Fuse Rating

50A

Output Fuse Rating

40A

Warranty

2 Years

Protection

Short Circuit, Surge, Reverse Polarity, Overload

Input (Operating) Voltage

240VAC / 9 - 32VDC

Length (mm)

445

Width (mm)

185

Height (mm)

79

Weight (kg)

5.5

AC Mains Plug Type

AU, NZ, EU

Type Approval

CE



You can find detailed information in the user manual.

This version of the Redarc manager is the follow up of all BMS1230 units

More information

Delivery – Pickup or Shipping

We offer you a convenient shipping and delivery service or you can simply come and pickup your order from our shop.

We do ship worldwide. Within Australia we might be able to offer express delivery on top of standard delivery calculated on check out. Please call us on +61861553932 and we will happily organise the shipping for you.

If you choose to pickup your order, we will call you when your items are available. This generally takes between 1-3 business days. Please note that we do not regularly stock all items in our shop so please wait for us to confirm they are ready for pickup or call us to check availability.

See more information about our pickup and shipping options.

FAQ

What is a battery management system?

It is an electronic device which manages and protects a rechargeable battery. Functions include: Protecting the battery from overcharge; Maintaining a battery at optimum charge; Monitoring the battery for faults or conditions that could damage the battery from for example to high temperature; Protecting the battery from undercharge and protecting the voltage source (for example starter battery) from being drained, by isolating the incoming power supply once it gets below a certain voltage. Here you can read more about battery management systems.

Why is The Manager 30 so expensive?

The Manager30 combines charging and maintaining with all features you get with

  1. A DCDC charger (charging of 12V),
  2. A battery monitor incl. shunt (monitoring the actual state of your battery and not just displaying the voltage charge)
  3. A solar regulator
  4. A dual battery isolator
  5. A load disconnect controller and
  6. A smart battery charger of 240V with a high amperage of 30.

Another important difference to a single shunt which connects to just one appliance is that The Manager connects to all different outputs and inputs. It can separate and monitor more thoroughly incl. Lithium batteries and it does monitor in live time.

You can read deeper into battery management systems and related topics on the sciencedirect page.

What is the difference between the The Manager30 and The Manager30 R version?

The BMS1230S3 comes with a basic less informative screen. The BMS1230S3R includes a more complex and informative screen.
