ROADVISION’s BR208 Series LED rear combination lamps tick all the boxes! A simple DIY trailer lighting kit designed for the budget conscious consumer, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR208 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. Fitment is also made easy with integrated twin mounting studs and stainless steel hardware. With ROADVISION it’s FIT & FORGET.

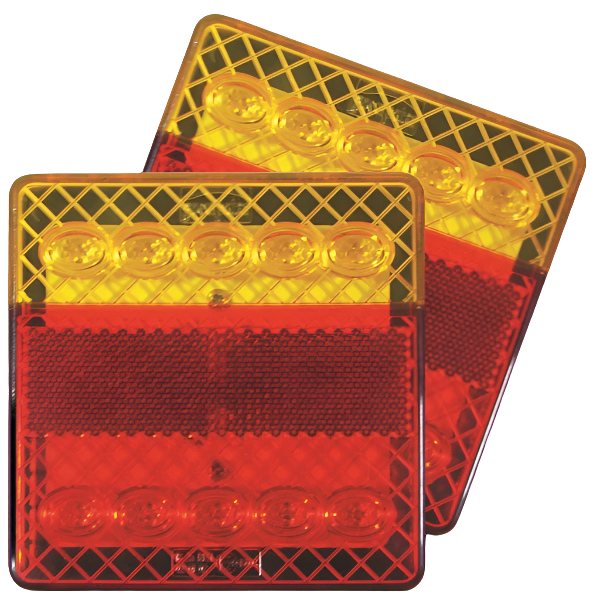

ROADVISION LED REAR COMBINATION LAMP
Regular price
Sale price
$52.00
BR208LR
Unit price
/ per
GST included.
FEATURES – LAMP KIT
BR208LR
- Compact LED combination lamp
- 12V DC input & low current draw
- 100,000 hour rated LED lifespan with solid state technology
- Water & dust proof (submersible)
- Sealed polycarbonate lens & housing
- Integrated reflector & optional licence plate lamp
- Pre-wired with 300mm sheathed tinned copper cable
- Easy surface mount stainless steel twin stud installation
- Maintenance free
- ADR/ECE approved for all functions
FEATURES – LAMP
BR208MV
- Compact LED combination lamp
- 10-30V DC input & low current draw
- 100,000 hour rated LED lifespan with solid state technology
- Water & dust proof (submersible)
- Sealed polycarbonate lens & housing
- Integrated reflector & optional licence plate lamp
- Pre-wired with 300mm sheathed tinned copper cable
- Easy surface mount stainless steel twin stud installation
- Maintenance free
- ADR/ECE approved for all functions
DIMENSIONS
RANGE SPECIFICATIONS
| Part Number | BR208LR | BR208MV |
|---|---|---|
| Description | Square Stop/Tail/Ind/Ref Twin Pack | Square Stop/Tail/Ind/Ref |
| Functions | Stop/Tail & Indicator | Stop/Tail & Indicator |
| Voltage Input | 12V DC | Multi-Volt 10-30V DC |
| Number of LED's | Indicator - 5 LED's Stop/Tail - 5 LED's |
Indicator - 5 LED's Stop/Tail - 5 LED's |
| Current Draw Amps | Ind - 0.09A @ 13.8V S/T - 0.09/0.02A @ 13.8V |
Ind - 0.09A @ 13.8V S/T - 0.09/0.02A @ 13.8V |
| Dimensions AxBxC | 100x100x21mm | 100x100x37mm |
| Lens Construction | Polycarbonate | Polycarbonate |
| Housing Construction | Polycarbonate | Polycarbonate |
| Mounting Hole Centre | 70mm Stud Centres | 70mm Stud Centres |
| Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| Wiring Colour Codes | Earth - White Stop - Red Rail - Brown Indicator - Green or Yellow |
Earth - White Stop - Red Rail - Brown Indicator - Green or Yellow |
| ADR Approval | Ind - E4-6R-0116003 S/T - E4-7R-0216003 Ref - E4-3R-0216003 |
Ind - E4-6R-0116003 S/T - E4-7R-0216003 Ref - E4-3R-0216003 |
