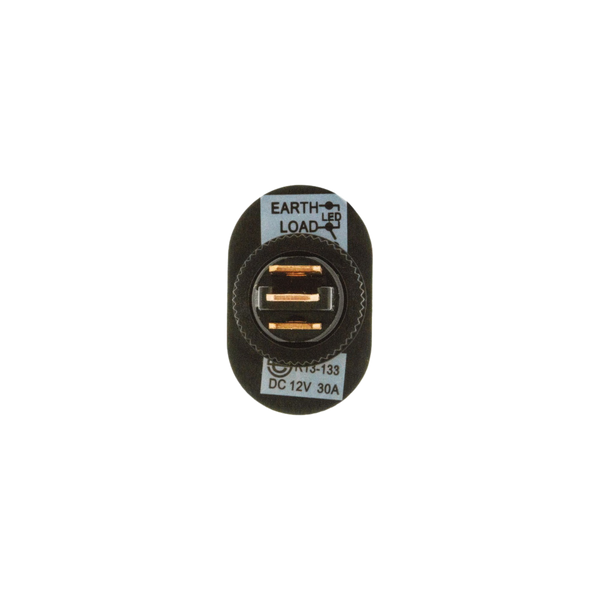

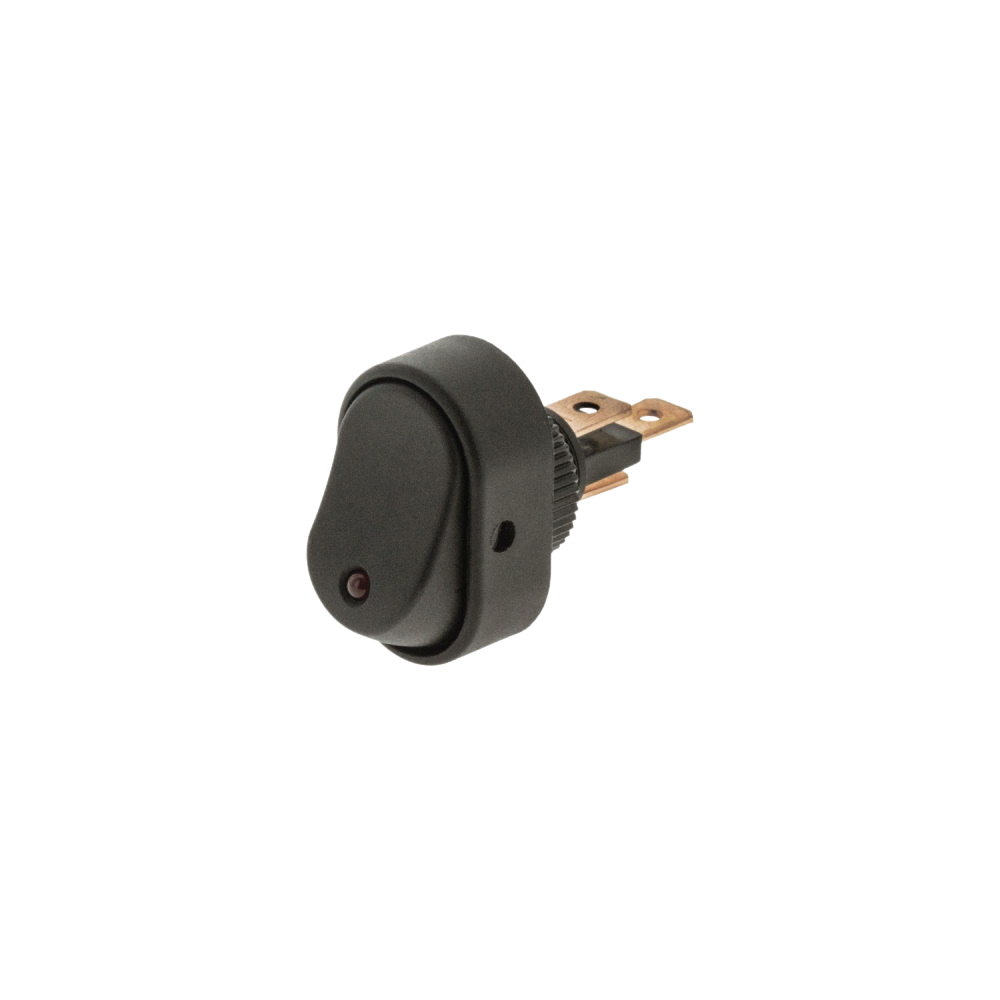

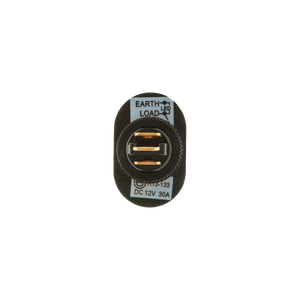

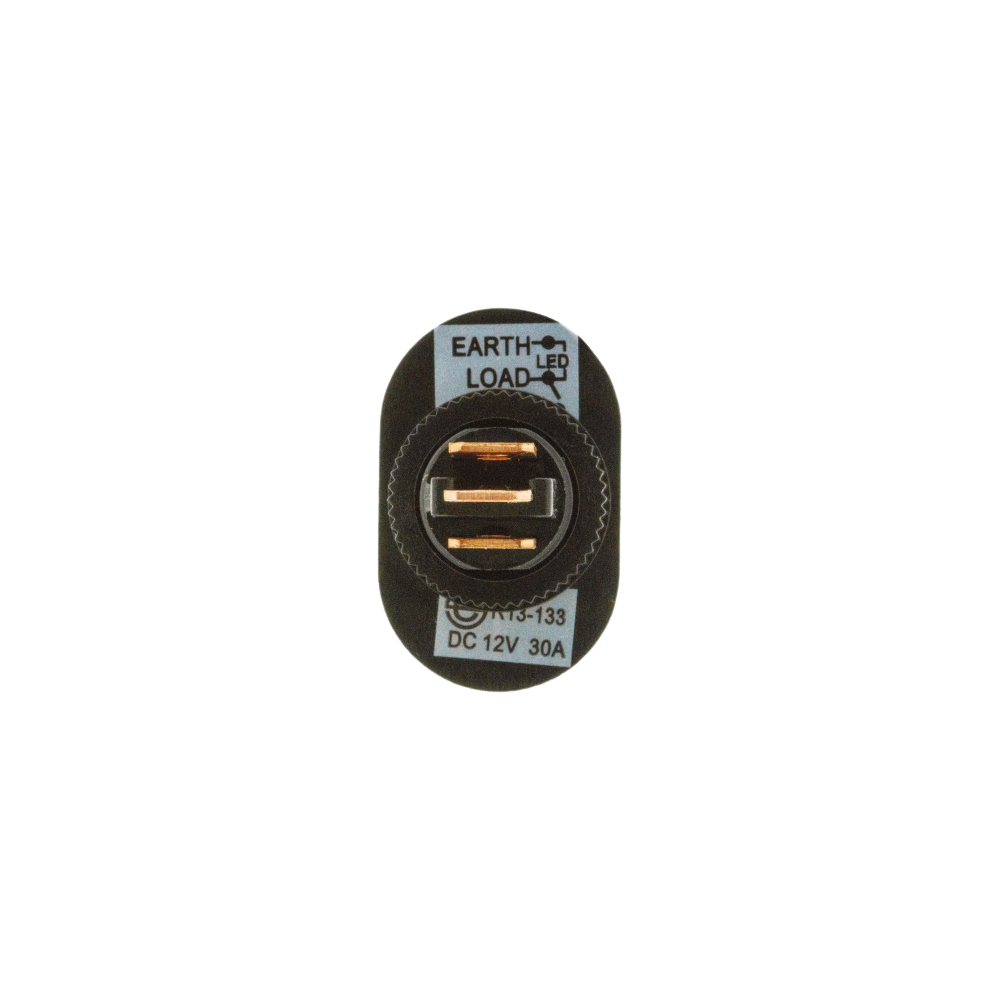

This on / off rocker switch is not labeled and of oval shape. It illuminates in red.
It does work with 2 functions (on / off) with 12/24V 30a @ 12V and 15a @24V draw.
Specifications:
| Voltage |
12 - 24 VOLT |
| Amps |
30 |
| Function |
ON / OFF |
| Number of Terminals |
2 |
| Number of Positions |
2 |
| Contact Configuration |
SPST |
| Lockable |
|
| Contacts |
NO |
| Illuminated |
YES |
| Illuminated Colour |
RED |
Mounting Stem Diameter: 12mm
