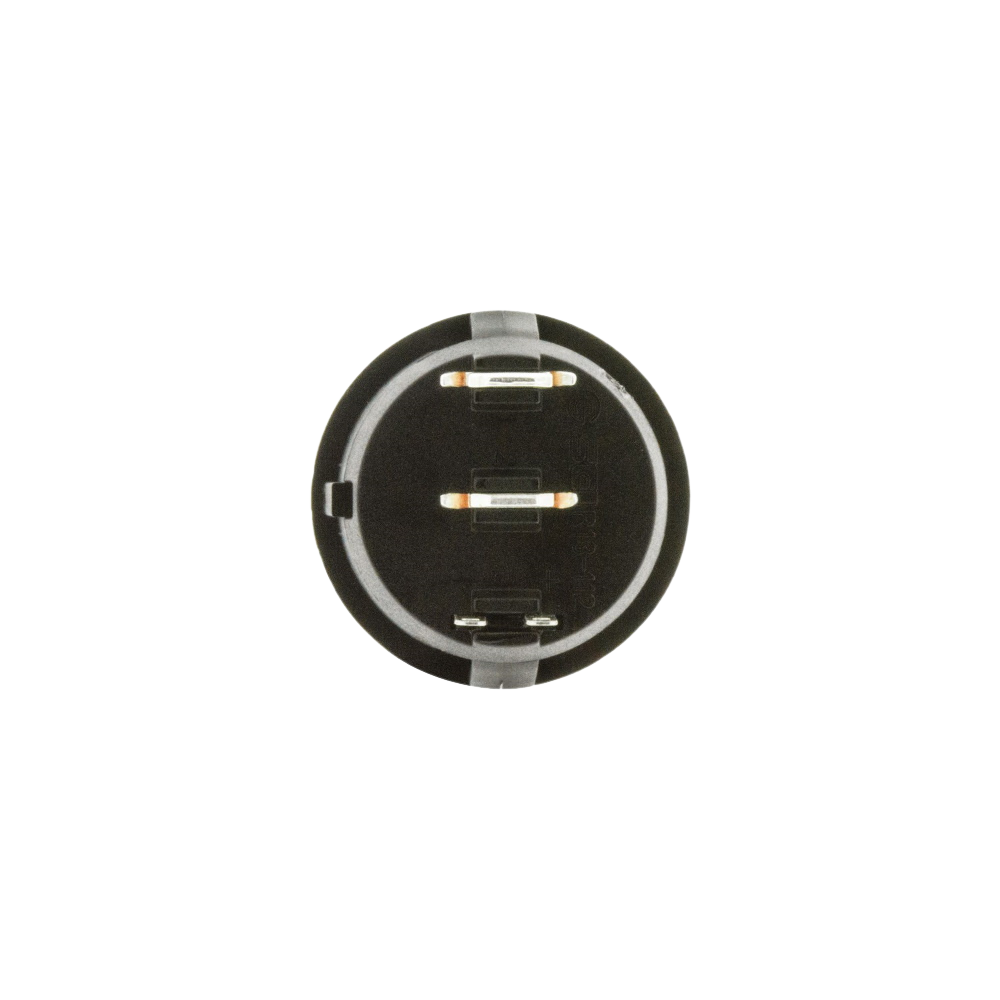

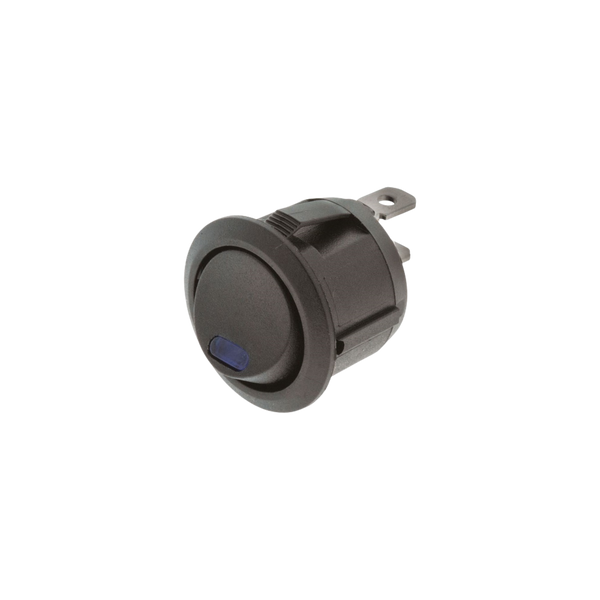

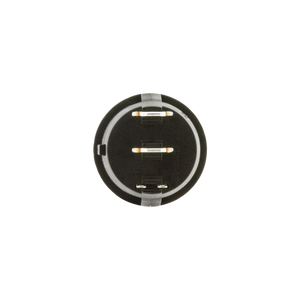

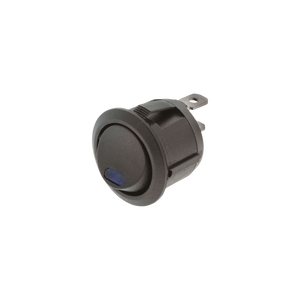

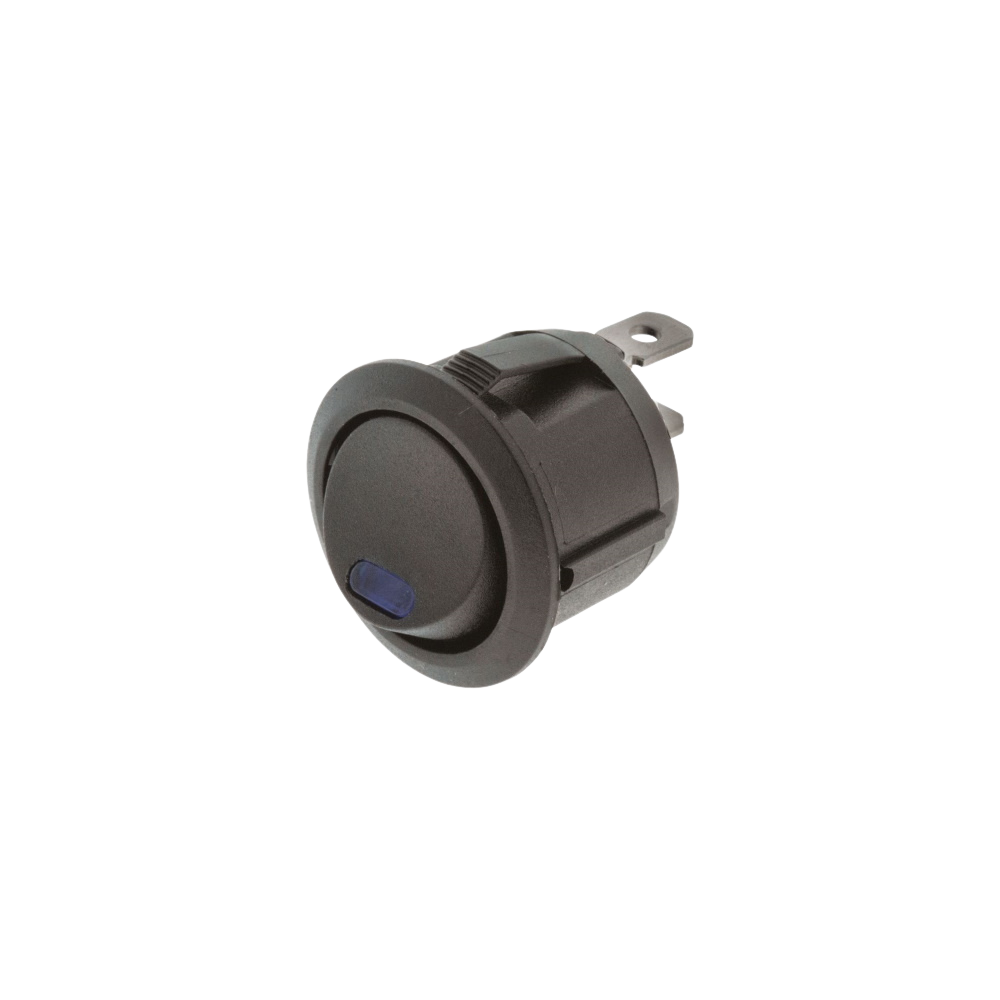

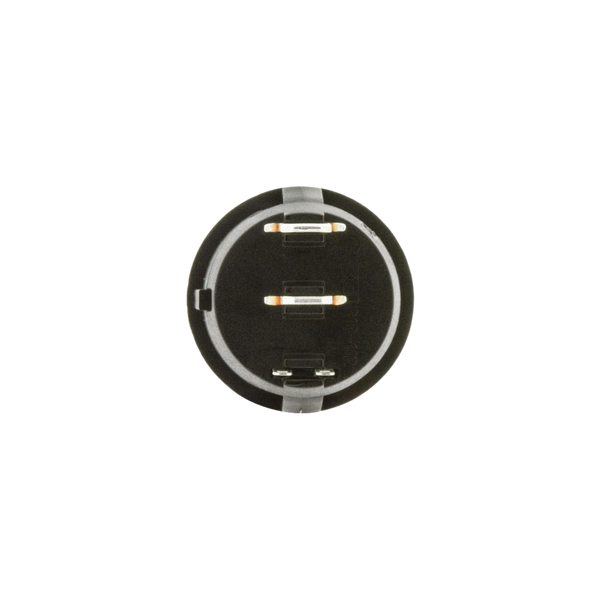

This on / off rocker switch is not labeled and of round shape.
It illuminates in blue and works with 2 functions (on / off) with 12/24V 10a @ 12V and 5a @24V draw.
Specifications:
| Voltage |
12 - 24 VOLT |
| Amps |
10 |
| Function |
ON / OFF |
| Number of Terminals |
4 |
| Number of Positions |
2 |
| Contact Configuration |
SPST |
| Lockable |
|
| Contacts |
NO |
| Illuminated |
YES |
| Illuminated Colour |
BLUE |
Mounting Stem Diameter: 20mm
For 24 Volt Applications: Use SW8373 Resistor
