This illuminated switch will make sure you turn on the right equipment when you need it.
All rocker switches offer a twin action and blue backlit icons for easy identification.

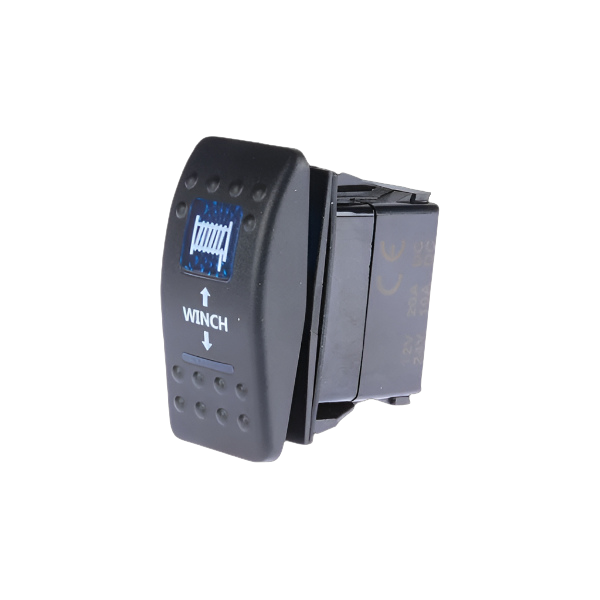

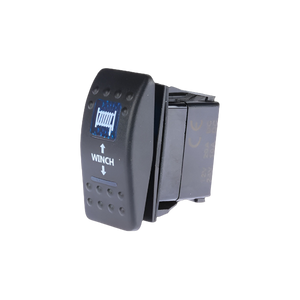

This sealed rocker switch, sometimes known as carling switch, with two-way momentary 'On' positions designed for activating spool-in and spool-out functions of a winch systems.
Durable, sealed switch ideal for 4WD and transport applications with 12/24V and 20A @ 12V only draw.
It illuminates in blue and is for your winch.
Specifications
| Voltage |
12 - 24 VOLT |
| Amps |
20 |
| Function |
Momentary On/Off / Momentary On |
| Number of Terminals |
5 |
| Number of Postions |
2 |
| Contact Configuration |
SPDT |
| Lockable |
|
| Contacts |
NO |
| Illuminated |
YES |
| Illuminated Colour |
BLUE |

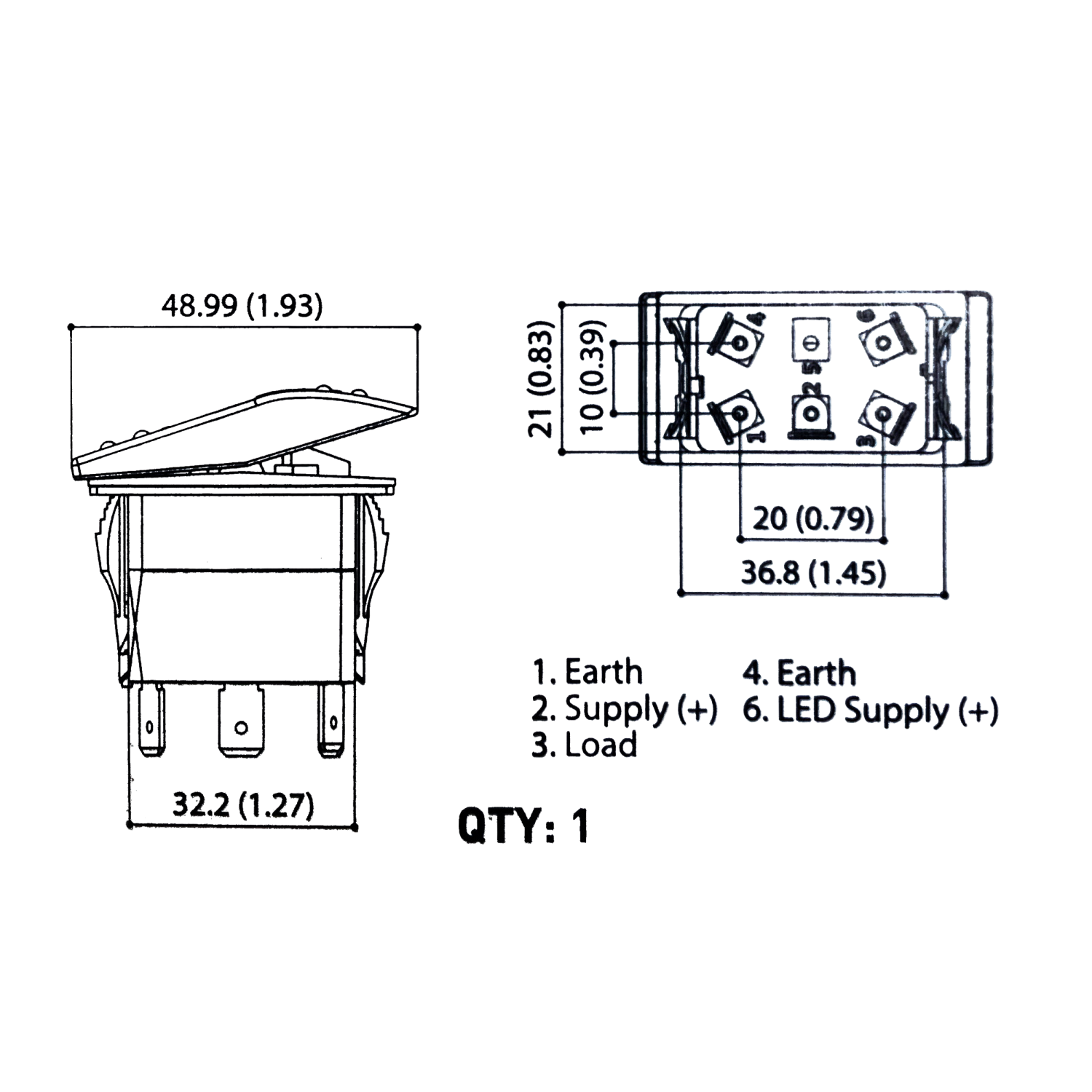

Mounting Opening: 37.5mm X 21mm
Additional parts
For easy installation also find rocker switch mounting panels in this same category. Available in different sizes.
