SEAFLO PORTABLE 12V 70PSI WASHDOWN KIT

The 41 Series Portable Washdown Pump Kit is a great compact solution for high pressure washing

41 Series Portable Washdown Pump Kit’s design allows for carefree travel with powerful water flow. A great, compact solution for cleaning boats, camping equipment, RVs, bikes and cars. Simply attach to a water source and12V power. This kit includes the carrying case, water pump, outlet hosecoil, inlet hose, and sprayer nozzle.

Description

The portable washdown system is designed for most of the wash down outdoor application. The high performance and easy installation makes it easier to use, even by a child. The design makes it is unnecessary to carry a tank when you use it.

Find here, the User Manual

Benefits & Features

• UV-protected Coiled Hose Coli
• Easy to use, store, and carry on
• Adjustable sprayer
• Built-in bypass valve
• Smooth flowing
• Quiet Operation

Specifications

• 2m Inlet hose
• 6.5m UV-protected coiled hose coil

Pump

Type:  4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type : Pressure switch & By pass control

Max Recommended Temp: 60° C（140° F）

Priming Capabilities: 6 feet (1.8 m) suction lift

Re-start pressure: Shut-off Pressure 70 PSI ：56 PSI ±5 PSI (±0.3 bar)

 Inlet/Outlet Ports: 3/4” QUICK ATTACH

Weight: 5.0 lbs (2.3 kg)

Motor

Leads: 16 AWG, 11" (28cm) long with 2-Pin

Duty Cycle:  intermittent

 Max. Amp Draw: 17.0 A

Fuse: 25.5 A

Performance

HEAT RISE

Dimensions

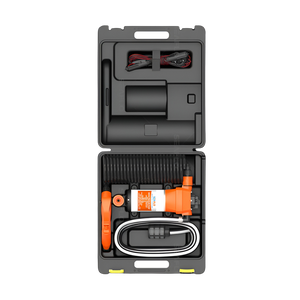

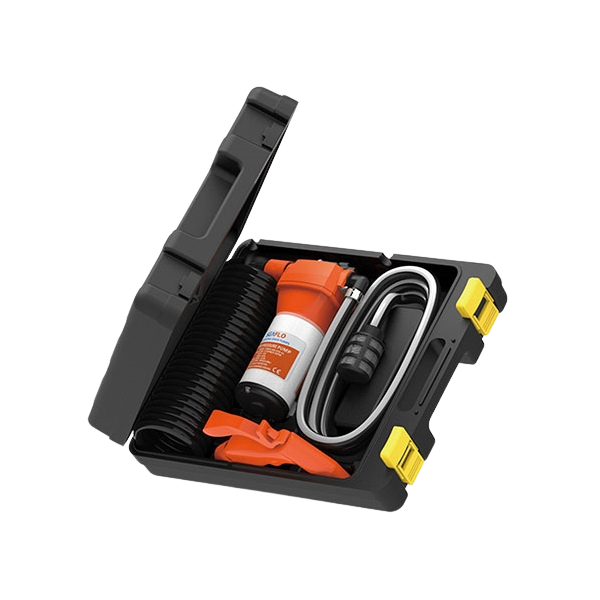

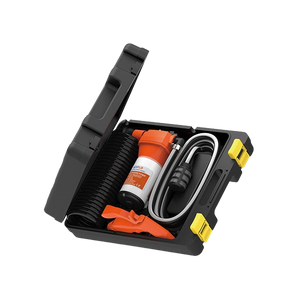

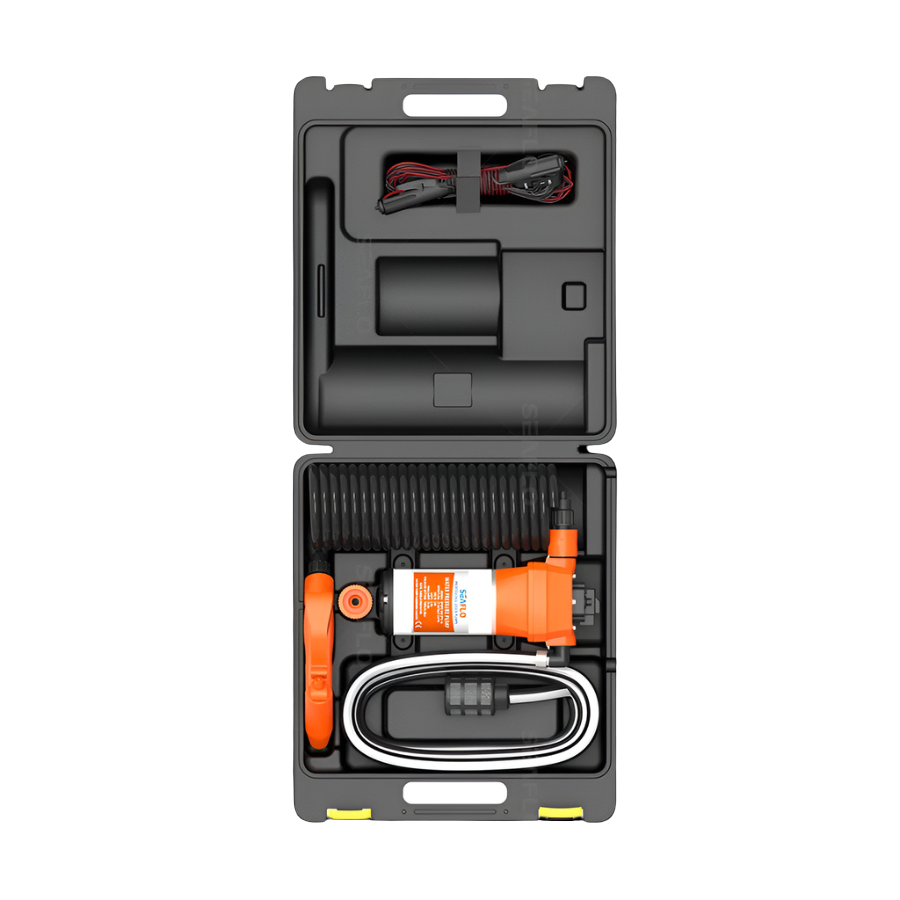

Package Includes

• 1 x Heavy-duty Portable Case
• 1 x SFDP1-045-070-41 Model Water Pressure Diaphragm Pump
• 1 x Wire Assembly
• 1 x Outlet Assembly
• 1 x Adapter
• 1 x Inlet Assembly
• 1 x Sprayer Nozzle
