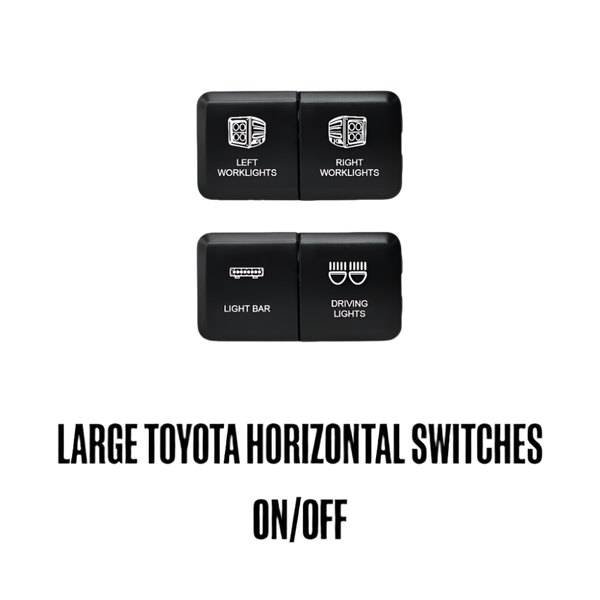

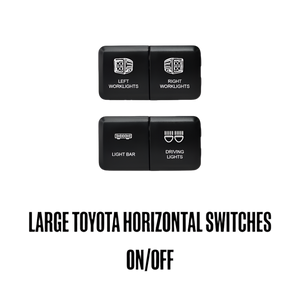

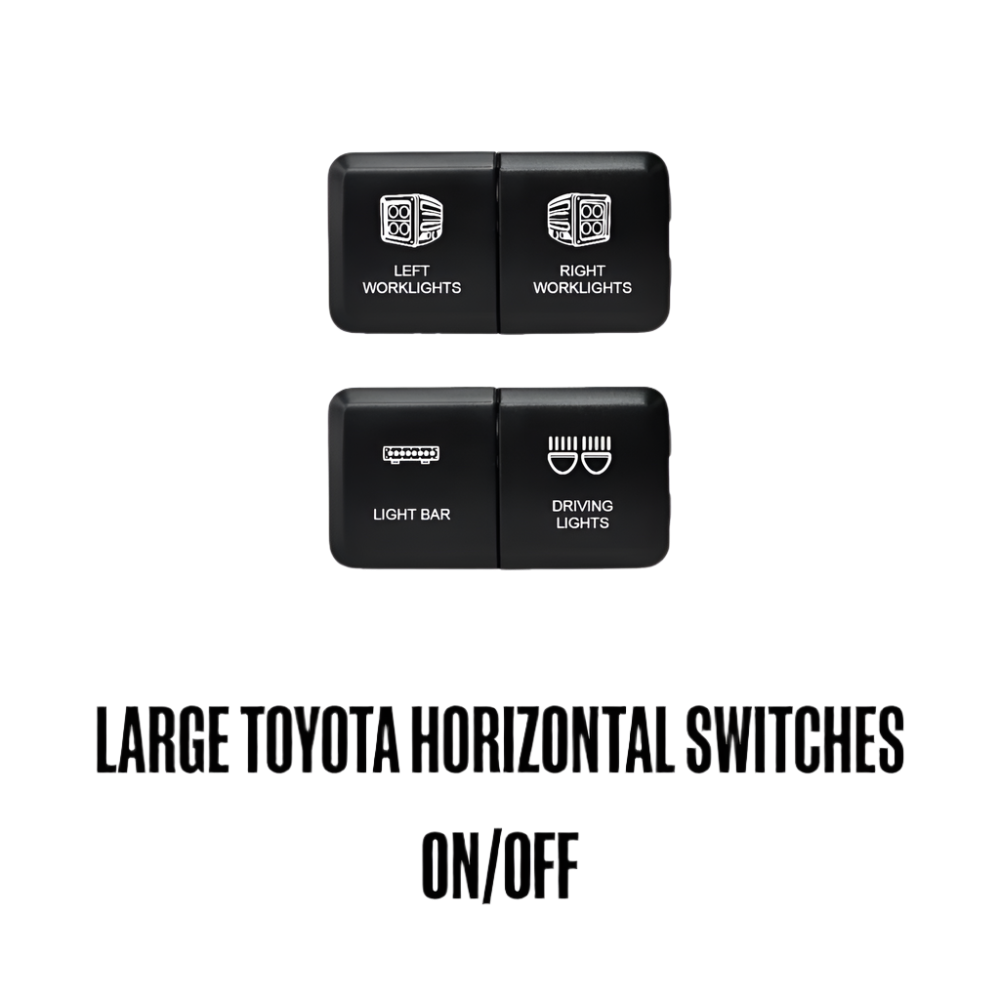

Toyota Horizontal Large Switches
Toyota Horizontal Large Switches
Toyota Horizontal Large Switches

TOYOTA HORIZONTAL LARGE SWITCHES

Regular price $49.00 Sale price $44.10
CBSWTYDMTO-H/Left+RightWorklights
Unit price  per
GST included. Shipping calculated at checkout.
Regular price $49.00 Sale price $44.10
CBSWTYDMTO-H/Left+RightWorklights
Unit price  per

Lightforce Horizontal Switches to suit horizontal 300 Series switch insert as well as suitable vehicles which have horizontal dash switch inserts.

Dual switch with a single powered input feeding two independently switched outputs suitable for early model and the 70 Series Toyota vehicles.

The LED’s in this switch are Green and Blue. Green is active when the dash light circuit is active and the switch is in the OFF position. Blue is active when the switch is in the ON position.



Features

  • Dual coloured illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.
  • Suitable for use with both positive and negative switched vehicles
  • This non-genuine OEM style switch has a maximum current rating of 3 amps @ 12 volts and is to be used in conjunction with a relay if current exceeds 3 amps.
  • Laser engraved icons and text to ensure longevity
  • Supplied with harness and connector
  • Australian design patent



The switches can function independent to the dash lights, however will not illuminate until the vehicles dash lights are activated. A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.

Please note this switch is single input and dual output. e.g. Headlights and Compressor will not work from this single switch.



Vehicle Compatibility

Make Model Compatible From Compatible To
Holden Colorado (fitted with LF fascia) 2017 2020
Toyota 100 Series Landcruiser 1998 2007
Toyota 4Runner 2003 2009
Toyota FJ Cruiser 2007 2018
Toyota Fortuner 2005 2015
Toyota HiAce 2005 2013
Toyota Highlander 2001 2007
Toyota Hilux 2005 2014
Toyota Kluger 2001 2007
Toyota Landcruiser 75 76 78 Series 1985 2018
Toyota Landcruiser 79 (Plastic Dash) Series 1985 2023
Toyota Prado 120 2003 2009
Toyota Tacoma 2005 2011
Toyota Tacoma (Left Side only) 2012 2020
Toyota Tundra (centre console if equipped) 2005 2006
